technical specifications
Generator Type
Moving Coil
Output
0.45mV (@ 5cm/sec.)
Recommended input load
850Ω – 1k5Ω
Recommended Tracking Weight
2.05 g (1.90g – 2.10g)
Frequency Response
10 Hz -50 kHz
Channel Separation
Minimum 30 dB
Coil Resistance
40 kΩ
Dynamic compliance
12 x 10-⁶ cm/dyne (@100Hz)
Magnet Type
Samarium Cobalt
Mounting to Stylus
7.8mm
Head-shell to Stylus
18.5mm

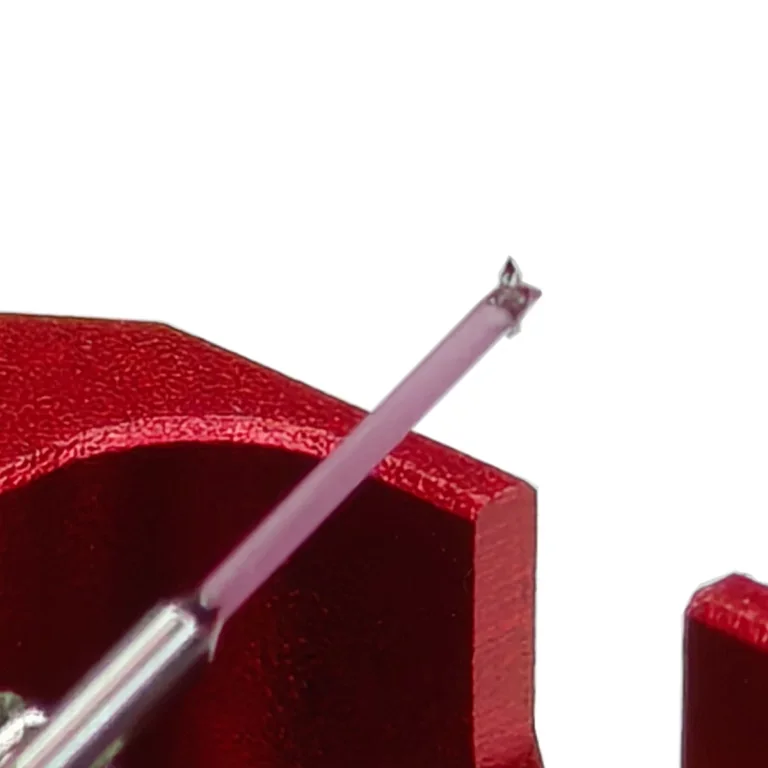

Stylus
Nude | Micro Ridge Diamond (2.4 x 73 μm)
Cantilever
Ruby | Aluminum Telescopic
Headshell Mounting
Special Vertere Tri-Point M2.5 Threaded Fixing Holes
Generator Fixing
Special Quad-Point Contact Four Stainless ‘Spike’ Screws
Net weight
11.8g
