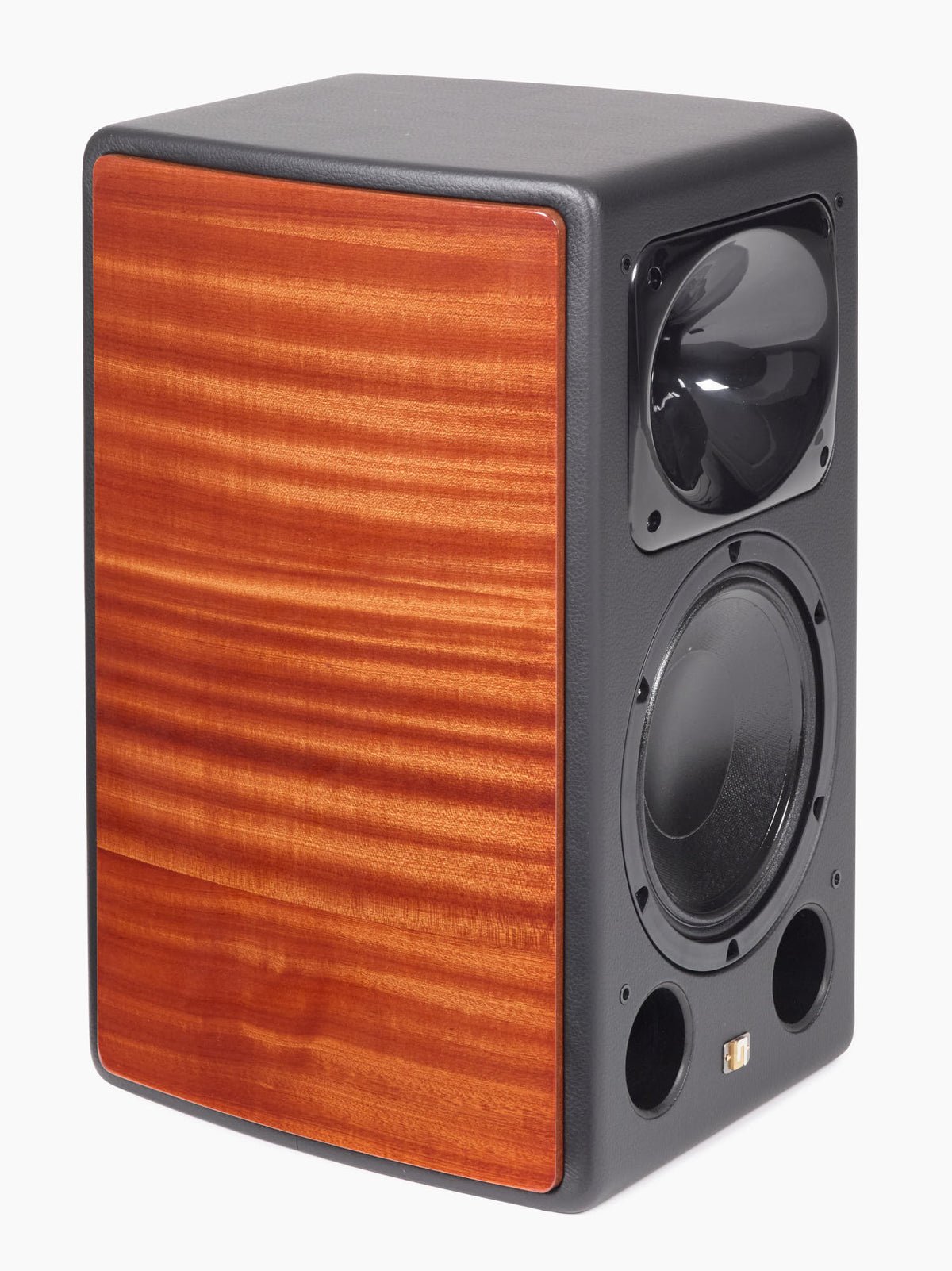

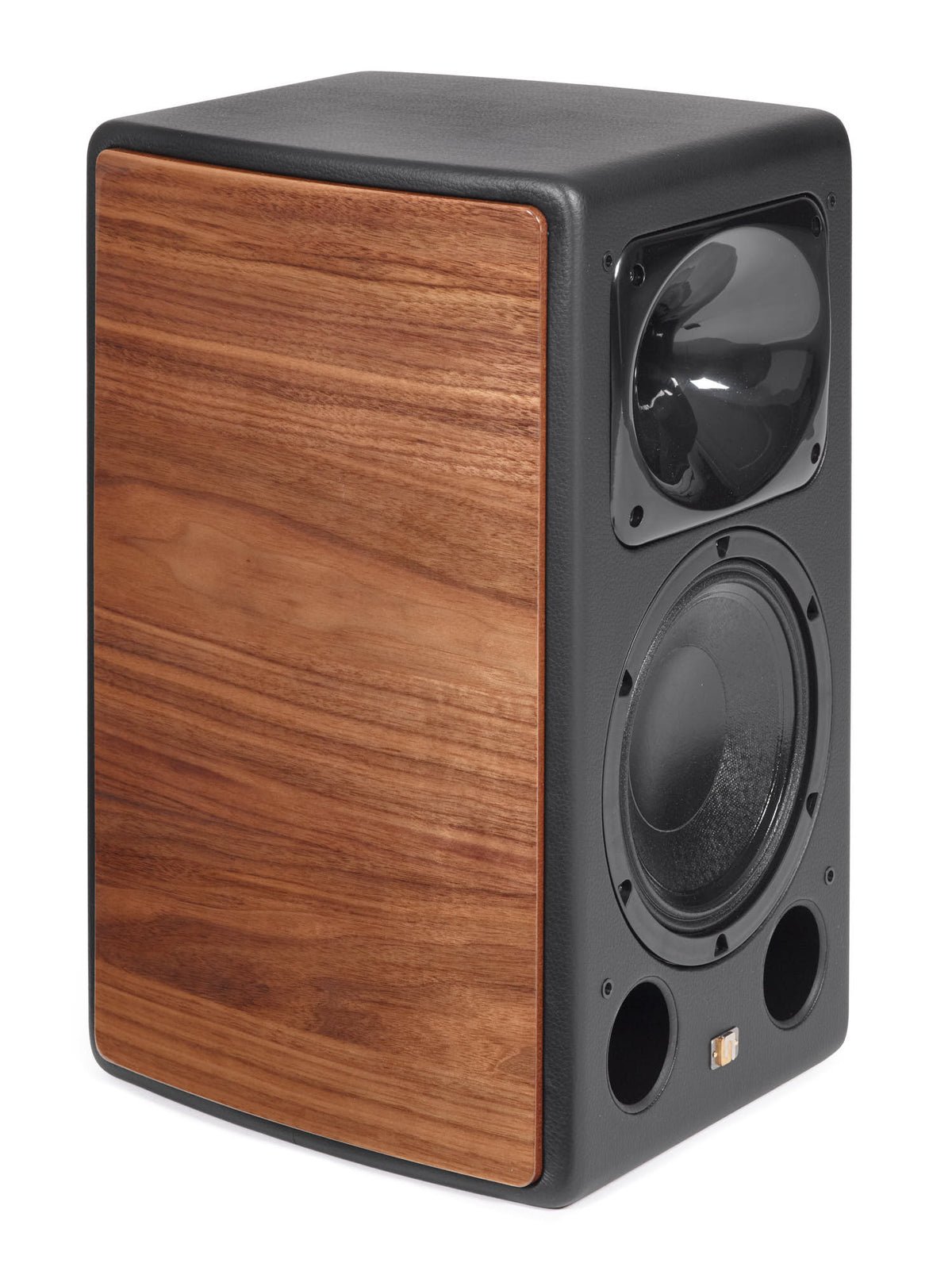

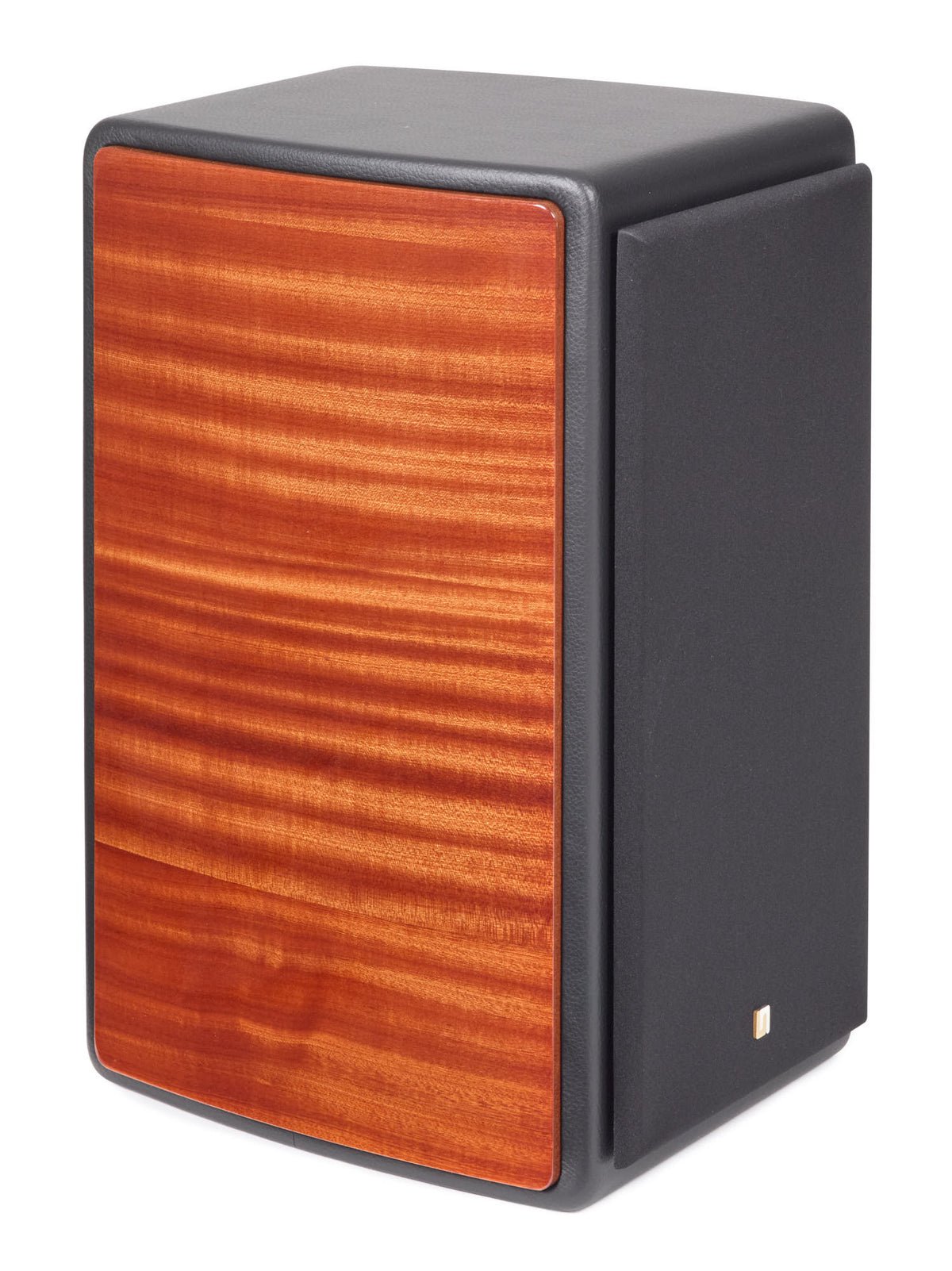

This new Unison MAX Mini model was created to be combined, in particular, with Unison Research tube amplifiers. For this purpose, not only the sensitivity but above all the impedance have been optimized. This is a compact sized reflex-loaded bookshelf two-way with two front reflex ports.
The MAX Mini has a well extended response towards the low frequencies and reproduces important sound volumes, x with a typical clear and defined mid-range and high quality reproduction of the high frequencies.
A great advantage of the Max Mini is the easy positioning in the room to obtain very high sound performance in your listening room.
Specifications
System: Shelf - Front Reflex

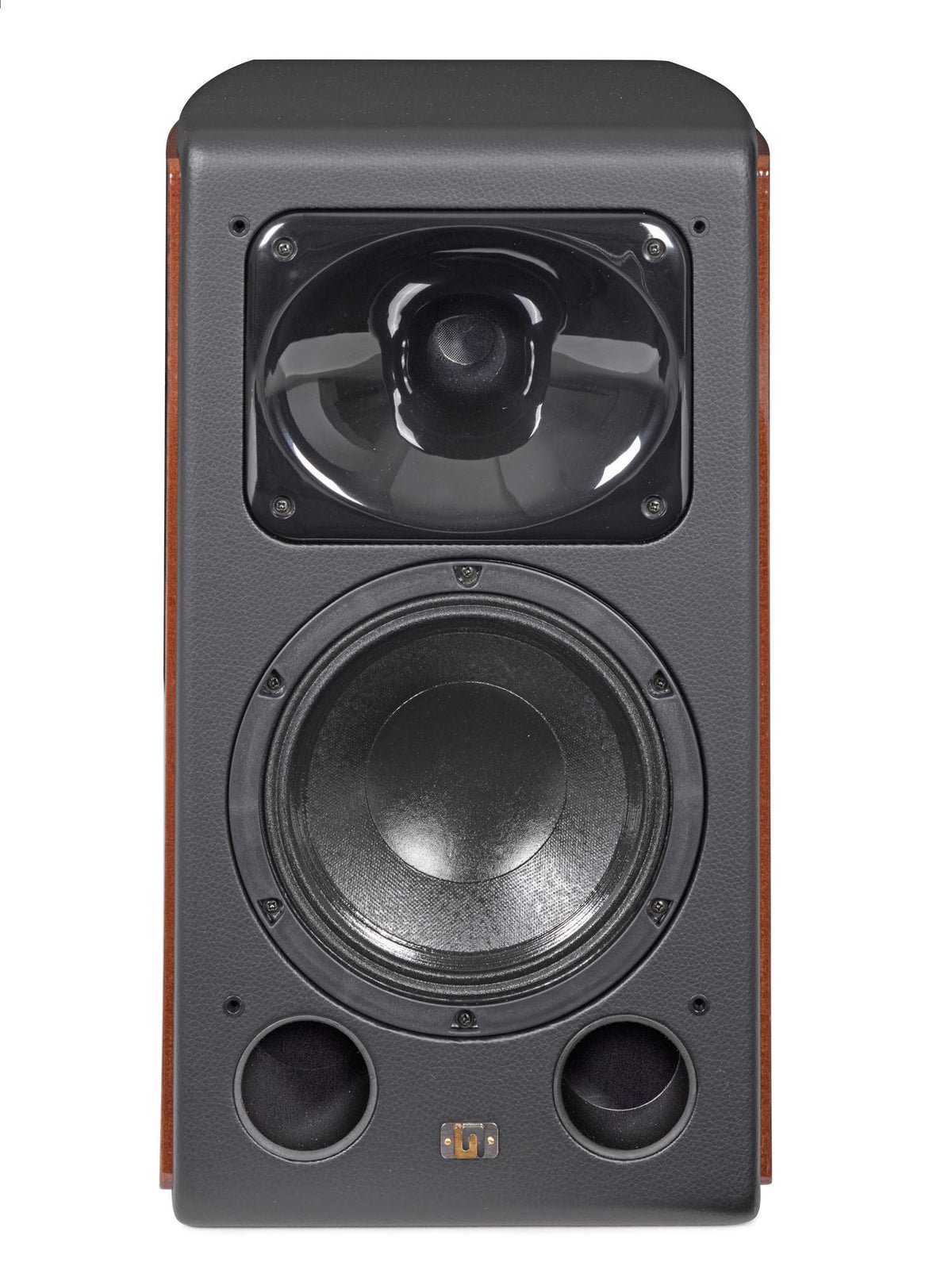

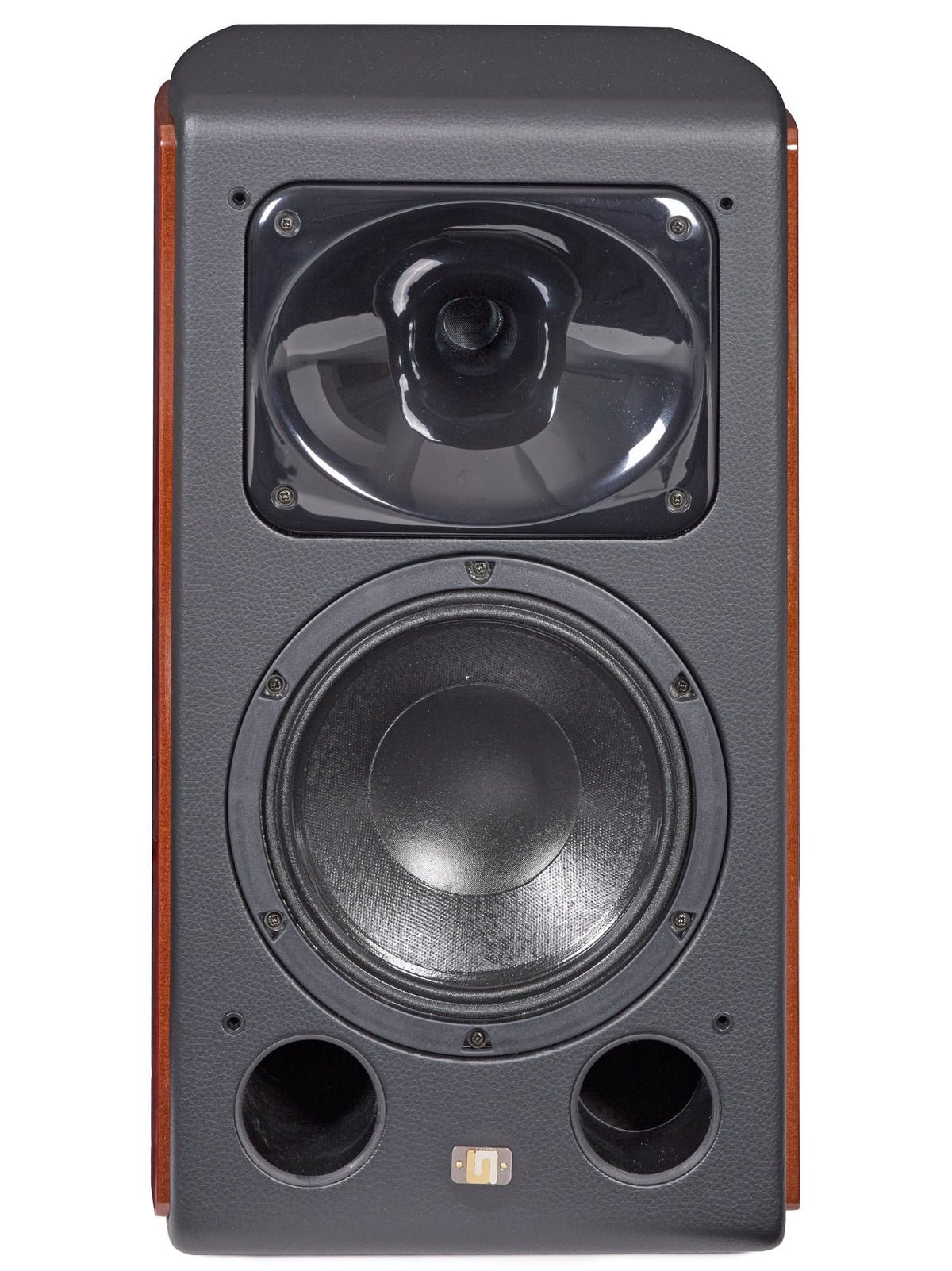

Speakers: 1 x 8 '' woofer, 1 x 1 '' compression driver
Number of ways: 2 ways
Frequency Response: 40-20000 Hz in the environment
Cross-over: Woofer: low pass 12 dB, Tweeter: high pass 12 dB, Crossover frequency between 1 and 1.5KHz
Power: 100 watts RMS
Sensitivity: 93 dB at 1 meter with 2.83Vrms
Nominal Impedance: 8 ohms (minimum 6 ohms)
Dimensions: H 49.5cm x W 28.5cm x D 36cm
Weight: 15 kg per case 30 kg per pair
Glossy finishes: Cherry, Walnut and Mahogany
