TAD-E1AX Speaker

$37,995.00

The TAD‐E1AX delivers ultra‐refined sound from its three‐way floor‐standing build. Featuring a 9 cm CST co‐axial driver (mid + beryllium tweeter), twin 16 cm MACC woofers, and advanced bass‐port tuning, it’s engineered for audiophiles seeking sheer precision and presence.


The TAD‐E1AX delivers ultra‐refined sound from its three‐way floor‐standing build. Featuring a 9 cm CST co‐axial driver (mid + beryllium tweeter), twin 16 cm MACC woofers, and advanced bass‐port tuning, it’s engineered for audiophiles seeking sheer precision and presence.


SPECIFICATIONS

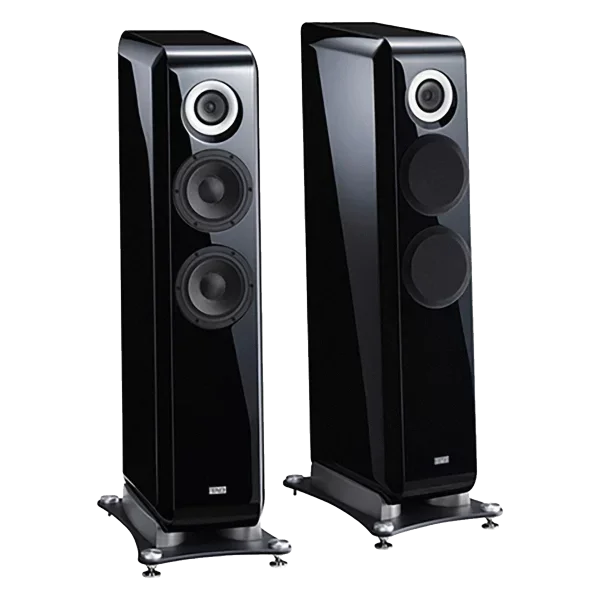

MODELS TAD-E1AX-K (Black)

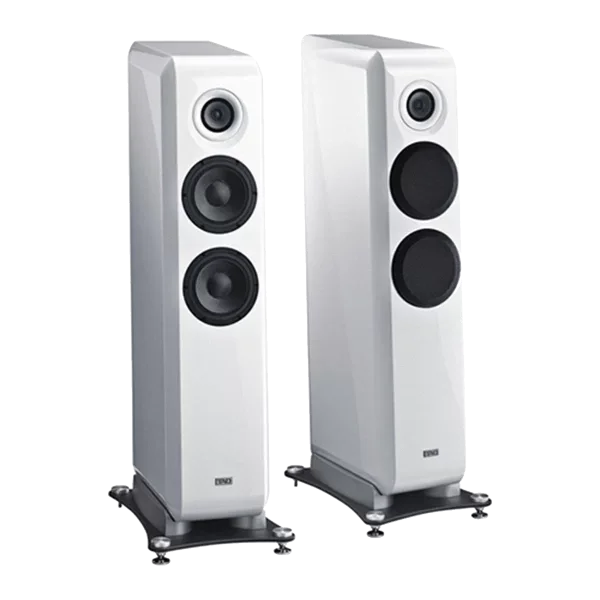

TAD-E1AX-GW (Glossy White)

TYPE 3-way, bass-reflex floor-standing speaker system

WOOFER 16 cm cone x 2

Midrange and tweeter: Coaxial 9 cm cone midrange and 2.5 cm dome tweeter
Frequency response: 29 Hz to 60 kHz
Crossover frequencies: 420 Hz and 2.5 kHz
PERFORMANCE DATA Maximum input: 200 W
Sensitivity: 88 dB (2.83 V at 1 m)
Nominal impedance: 4Ω
Unit polarity: Bass: +; Midrange: +; High: +

WEIGHT 54 kg (119.05 lb) per unit

DIMENSIONS 347 mm (W) × 1,146 mm (H) × 518 mm (D)
(13.66 in. (W) × 45.12 in. (H) × 20.39 in. (D))

ACCESSORIES 2 woofer grilles, 2 short cables, 3 cone-shaped spikes, 2 auxiliary feet, 3 spike holders, 4 non-slip pads,
cleaning cloth, owner’s manual
