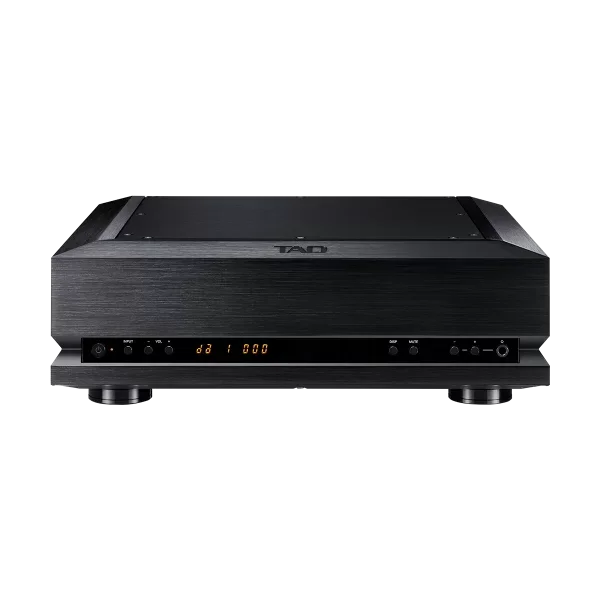

Image 1 of 2

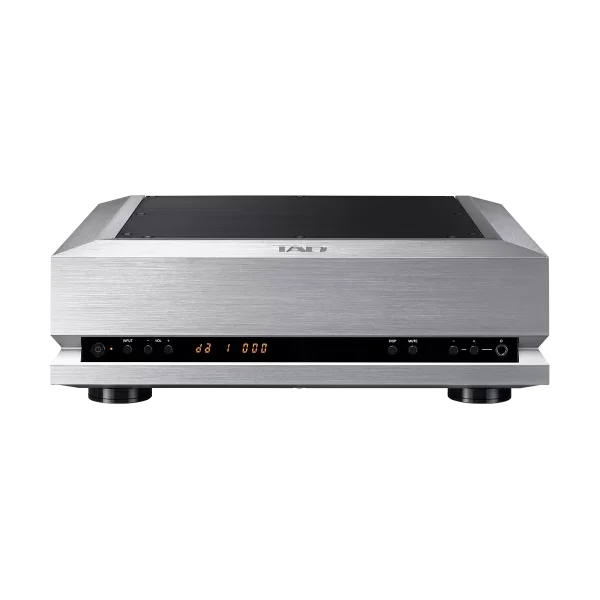

Image 2 of 2
SPECIFICATIONS
MODEL NO. TAD-DA1000TX
DIGITAL AUDIO INPUTS 1 XLR, 2 Coaxial, 1 Optical, 1 USB (Type B)
COMPATIBLE SAMPLING FREQUENCIES XLR / Coaxial: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Optical: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
USB: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz,
352.8 kHz, 384 kHz,
DSD64 (2.8 MHz), DSD128 (5.6 MHz), DSD256 (11.2 MHz)
USB OPERATING ENVIRONMENT USB 2.0 High-Speed
DIGITAL AUDIO OUTPUT 1 XLR, 1 Coaxial
ANALOG AUDIO OUTPUT 1 Balanced Output, 1 Unbalanced Output
OUTPUT VOLTAGE RATED VALUE 4 V (Balanced), 2 V (Unbalanced) at 1 kHz, 0 dB
S/N RATIO 115 dB
FREQUENCY CHARACTERISTICS Sampling frequency ≥ 88.2 kHz: 10 Hz – 40 kHz (–1 dB)
Sampling frequency = 44.1 kHz: 10 Hz – 20 kHz (–1 dB
)HEADPHONE OUTPUT 1 Headphone Jack
Recommended Impedance: 8 to 600 Ω
Maximum Output: 125 mW + 125 mW (at 32 Ω)
POWER SUPPLY VOLTAGE AC 120 V, 60 Hz (USA/Canada)
AC 220 V to 240 V, 50 Hz/60 Hz (Europe/Asia)
POWER CONSUMPTION 49 W
POWER CONSUMPTION (STANDBY) 0.5 W or less
DIMENSIONS 440 mm (W) × 150 mm (H) × 406 mm (D)
17-11/32 in. (W) × 5-29/32 in. (H) × 16 in. (D)
WEIGHT 16.5 kg (36.4 lb)
USB OS COMPATIBILITY Compatible with Windows 8, 7, Vista, Mac OS 10.6 and higher
PCM352.8 kHz, 384 kHz, DSD128, and DSD256 supported only on Windows 10, Mac OS 10.6 and higher
