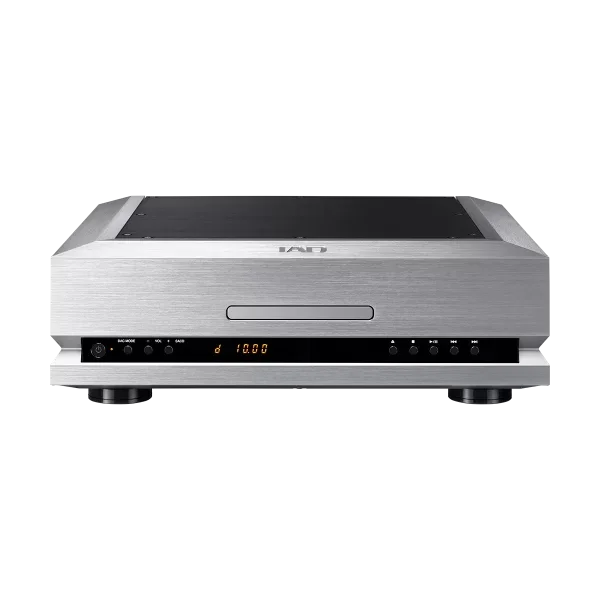

TAD D1000TX Evolution Disc Player

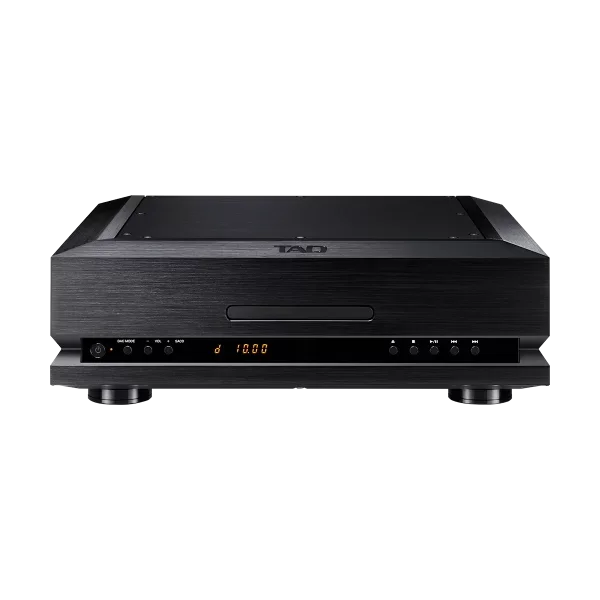

TAD D1000TX front view
TAD D1000TX Evolution Disc Player
TAD D1000TX front view

TAD D1000TX Evolution Disc Player

$21,995.00

The TAD D1000TX Evolution Disc Player combines high‐resolution playback, dual differential D/A converters, and an ultra‐high C/N master clock with a vibration‐damped drive mechanism and independent analog/ digital power supplies — unveiling every nuance in music with unmatched accuracy.

The TAD D1000TX Evolution Disc Player combines high‐resolution playback, dual differential D/A converters, and an ultra‐high C/N master clock with a vibration‐damped drive mechanism and independent analog/ digital power supplies — unveiling every nuance in music with unmatched accuracy.

SPECIFICATIONS

MODEL NO. TAD-D1000TX

DIGITAL AUDIO INPUTS 1 XLR, 2 Coaxial, 1 Optical, 1 USB (Type B)

COMPATIBLE SAMPLING FREQUENCIES XLR / Coaxial: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Optical: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
USB: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz,
352.8 kHz, 384 kHz,
DSD64 (2.8 MHz), DSD128 (5.6 MHz), DSD256 (11.2 MHz)

USB OPERATING ENVIRONMENT USB 2.0 High-Speed

DIGITAL AUDIO OUTPUT 1 XLR, 1 Coaxial

ANALOG AUDIO OUTPUT 1 Balanced Output, 1 Unbalanced Output

OUTPUT VOLTAGE RATED VALUE 4 V (Balanced), 2 V (Unbalanced) at 1 kHz, 0 dBS/N

RATIO 115 dB

FREQUENCY CHARACTERISTICS Sampling frequency ≥ 88.2 kHz: 10 Hz – 40 kHz (–1 dB)
Sampling frequency = 44.1 kHz: 10 Hz – 20 kHz (–1 dB)

POWER SUPPLY VOLTAGE AC 120 V, 60 Hz (USA/Canada)
AC 220 V to 240 V, 50 Hz/60 Hz (Europe/Asia)

POWER CONSUMPTION 43 W

POWER CONSUMPTION (STANDBY) 0.5 W or less

DIMENSIONS 440 mm (W) × 150 mm (H) × 406 mm (D)
17-11/32 in. (W) × 5-29/32 in. (H) × 16 in. (D)

WEIGHT 18.5 kg (40.8 lb)

USB OS COMPATIBILITY Compatible with Windows 8, 7, Vista, Mac OS 10.6 and higher
PCM352.8 kHz, 384 kHz, DSD128, and DSD256 supported only on Windows 10, Mac OS 10.6 and higher
