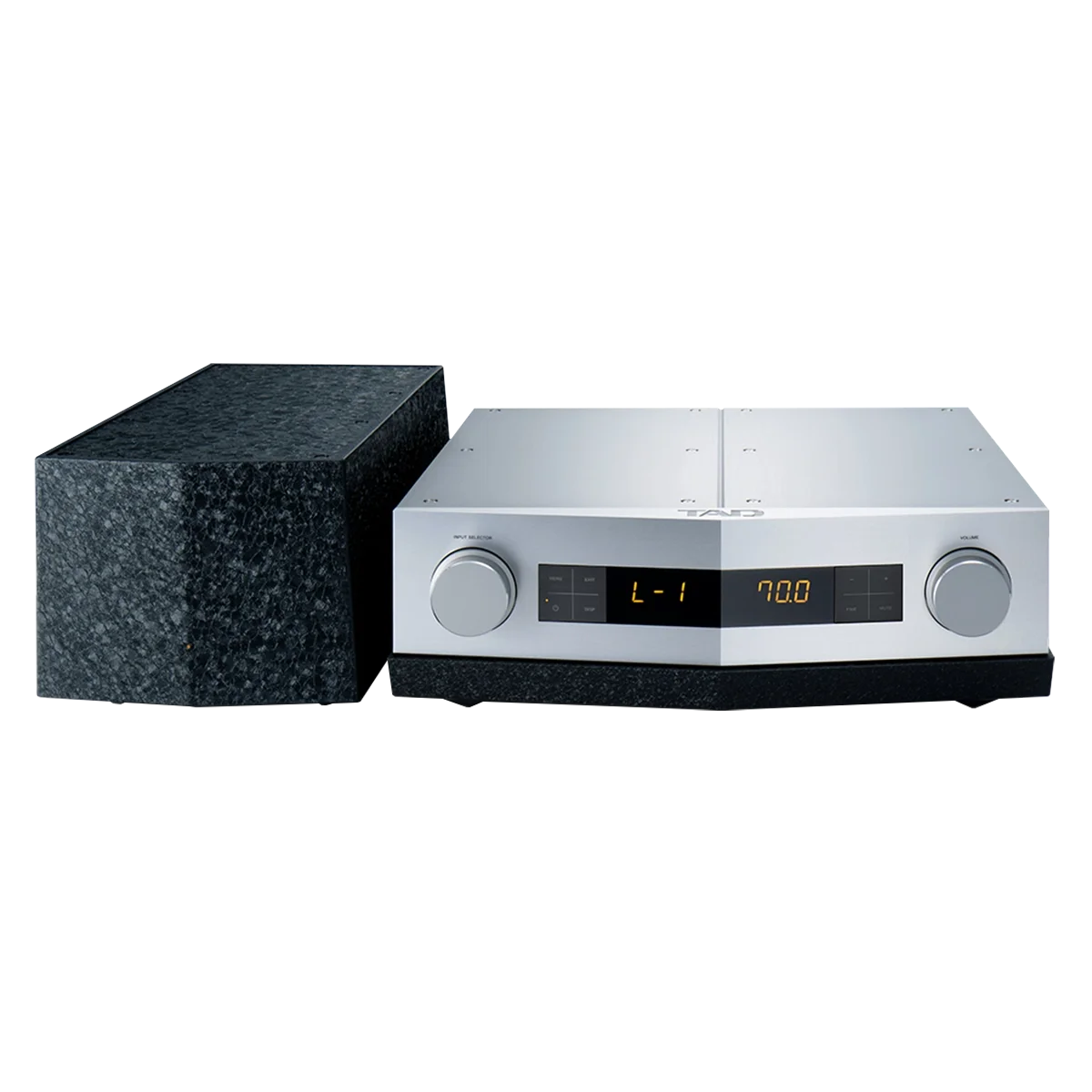

TAD-C700 Reference Preamplifier front view
TAD-C700 Reference Preamplifier front view

TAD-C700 Reference Preamplifier

$69,995.00

The TAD C700 Reference Preamplifier delivers unprecedented purity with fully balanced dual‐mono circuitry, a hefty 400 VA toroidal power supply, and advanced vibration‐suppression. It offers extreme precision in volume, signal path, and input sensitivity for audiophiles demanding uncompromised realism.

The TAD C700 Reference Preamplifier delivers unprecedented purity with fully balanced dual‐mono circuitry, a hefty 400 VA toroidal power supply, and advanced vibration‐suppression. It offers extreme precision in volume, signal path, and input sensitivity for audiophiles demanding uncompromised realism.

SPECIFICATIONS

MODEL NO. TAD-C700

RATED OUTPUT VOLTAGE Balanced output: 1.5 V
Unbalanced output: 0.75 V

MAXIMUM OUTPUT VOLTAGE Balanced output: 20 Vrms
Unbalanced output: 10 Vrms

INPUT IMPEDANCE Balanced input: 100 kΩ
Unbalanced input: 50 kΩ

S/N RATIO 120 dB

FREQUENCY RESPONSE 10 Hz – 100 kHz (–1 dB)

INPUT TERMINALS Balanced input × 4, Unbalanced input × 2

OUTPUT TERMINALS Balanced output × 2, Unbalanced output × 2

POWER SUPPLY VOLTAGE AC 120 V, 60 Hz (USA)
AC 220 V to 240 V, 50 Hz / 60 Hz (Europe, Asia)

POWER CONSUMPTION 52 W (Standby: 0.5 W or less)

Main amplifier unit: 450 mm (W) × 150 mm (H) × 440 mm (D)
17-23/32 in. (W) × 5-29/32 in. (H) × 17-21/64 in. (D)
DIMENSIONS Power-supply unit: 220 mm (W) × 185 mm (H) × 430 mm (D)
8-21/32 in. (W) × 7-9/32 in. (H) × 16-59/64 in. (D)

WEIGHT Main amplifier unit: 29.0 kg (63 lb 15 oz)
Power-supply unit: 15.0 kg (33 lb 1 oz)
