SPL Phonitor X DAC768xs

$3,750.00

The Phonitor x is both an outstanding headphone amplifier and an excellent preamplifier that can be used to directly drive power amplifiers or active speakers. With the optional DA converter, it not only plays from analog sources, but also directly from digital sources. The Phonitor Matrix allows speaker-like listening via headphones.  Thanks to VOLTAiR technology, it offers all this in the highest possible sound quality.

Great sound – for all headphones
The Phonitor x offers connections for a standard headphone with a stereo jack plug and for balanced-driven headphones using a 4-pol XLR jack. Thanks to the enormous output power, all headphones are driven effortlessly. Thus, it plays out the advantages of the SPL VOLTAiR technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.

Headphones or Speaker
The OUTPUT switch turns the headphone amplifier into a preamplifier – simply switch from headphones to speakers. In the center position (mute), no signal reaches the outputs. The VU meters light up red.

To the power amplifiers

or to the active loudspeakers you can use the balanced via XLR sockets – for long cable runs, and unbalanced via RCA sockets. The source signal is always present at both speaker outputs.

The standby mode of devices with 12V trigger input can be switched on and off via AMP CTL. This allows, for example, the SPL Performer s800, Performer m1000 or Performer s1200 power amplifiers to be ideally integrated into the set-up.

Milled from solid

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.

The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote Control
The volume control can be remotely controlled with any infrared remote control. The Phonitor x learns to communicate with it with the simple push of a button.


Learning made easy
This video explains how you can use any infrared remote control to remotely control the volume.

Source of joy
Up to five stereo sources can be connected to the Phonitor x: XLR, RCA, and via the optional DAC768xs, USB, COAX, and OPTICAL. The Phonitor x accepts a variety of different audio connections. Balanced via XLR or unbalanced via RCA jacks.

Color:

The Phonitor x is both an outstanding headphone amplifier and an excellent preamplifier that can be used to directly drive power amplifiers or active speakers. With the optional DA converter, it not only plays from analog sources, but also directly from digital sources. The Phonitor Matrix allows speaker-like listening via headphones.  Thanks to VOLTAiR technology, it offers all this in the highest possible sound quality.

Great sound – for all headphones
The Phonitor x offers connections for a standard headphone with a stereo jack plug and for balanced-driven headphones using a 4-pol XLR jack. Thanks to the enormous output power, all headphones are driven effortlessly. Thus, it plays out the advantages of the SPL VOLTAiR technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.

Headphones or Speaker
The OUTPUT switch turns the headphone amplifier into a preamplifier – simply switch from headphones to speakers. In the center position (mute), no signal reaches the outputs. The VU meters light up red.

To the power amplifiers

or to the active loudspeakers you can use the balanced via XLR sockets – for long cable runs, and unbalanced via RCA sockets. The source signal is always present at both speaker outputs.

The standby mode of devices with 12V trigger input can be switched on and off via AMP CTL. This allows, for example, the SPL Performer s800, Performer m1000 or Performer s1200 power amplifiers to be ideally integrated into the set-up.

Milled from solid

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.

The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote Control
The volume control can be remotely controlled with any infrared remote control. The Phonitor x learns to communicate with it with the simple push of a button.


Learning made easy
This video explains how you can use any infrared remote control to remotely control the volume.

Source of joy
Up to five stereo sources can be connected to the Phonitor x: XLR, RCA, and via the optional DAC768xs, USB, COAX, and OPTICAL. The Phonitor x accepts a variety of different audio connections. Balanced via XLR or unbalanced via RCA jacks.

The DAC768xs

The converter chip in the optional digital-to-analog converter is the highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip, which thanks to its architecture reproduces the finest sound details. It converts PCM audio at 32-bit resolution and a sampling rate of up to 768 kHz, which is 16 times the resolution of a CD. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256. Unlike the DAC768, which is built into the Director Mk2 for example or available as an option for the Phonitor xe, the DAC768xs does not offer an AES/EBU digital input. The SPL DLP120 with VOLTAiR technology was also not included in the DAC768xs. Nevertheless, it offers a great performance that is unparalleled in this league.

Finding the middle

is not always easy. By our very nature, hearing can be leaning more to the left or more to the right. This is especially obvious when listening with headphones.

That’s why Phonitor x has the uniquely finely resolved laterality control. With it, the center can be found perfectly.

With the mode switch you can choose between stereo or mono playback. To the right, the laterality control is switched on.

The Revolution: Phonitor-Matrix

The Phonitor Matrix is the revolution in the headphone amplifier.

Thanks to the Phonitor Matrix, music can be experienced on headphones as if it was played on speakers. The tiring super stereo effect is a thing of the past.

Enjoy their music without listening fatigue and exactly the way it should be heard.

The highest possible audio quality requires the highest possible audio operating voltage.

The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers. This high voltage would destroy conventional components and operational amplifiers. The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.  By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed. The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.

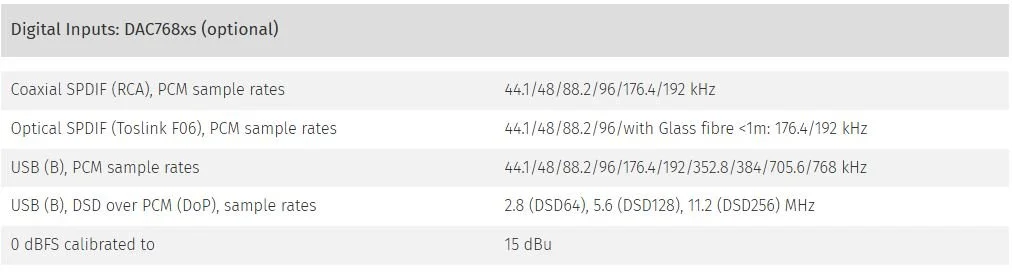

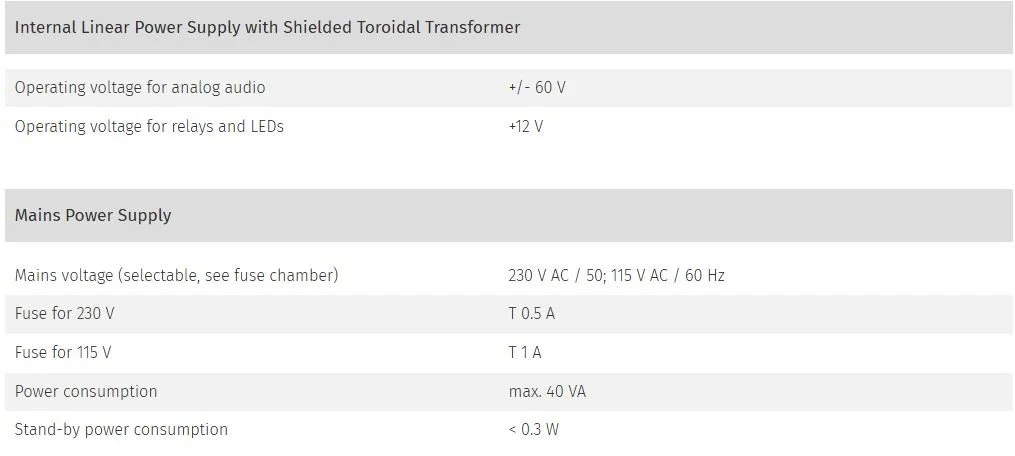

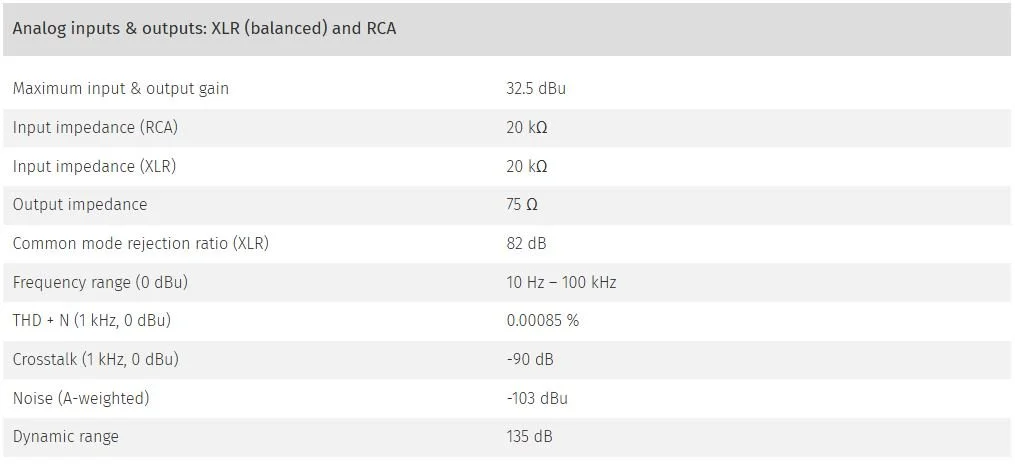

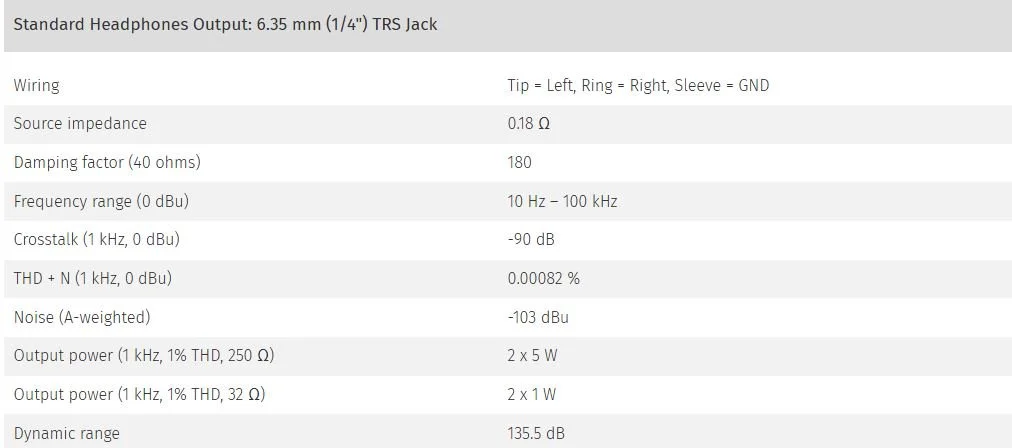

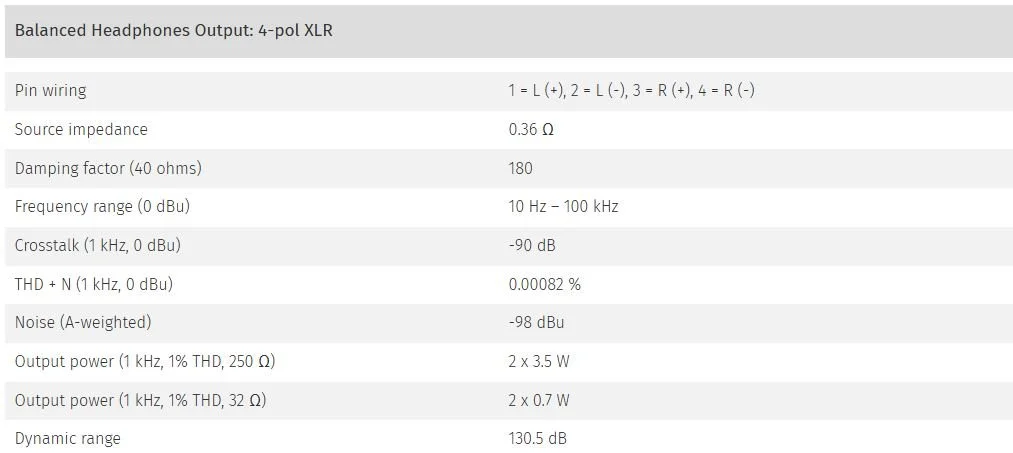

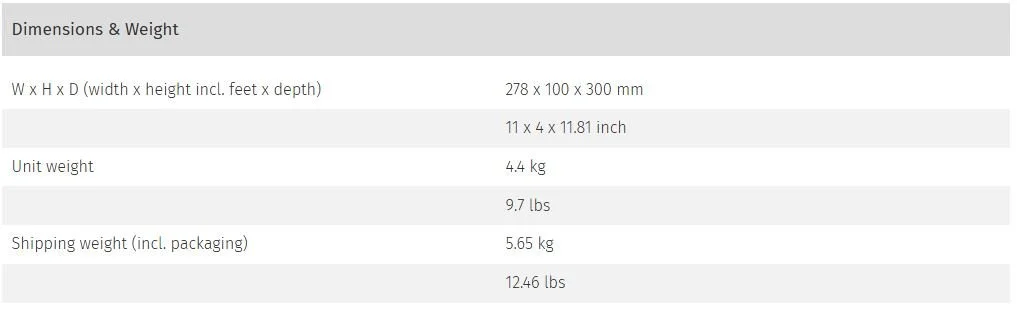

Specifications
