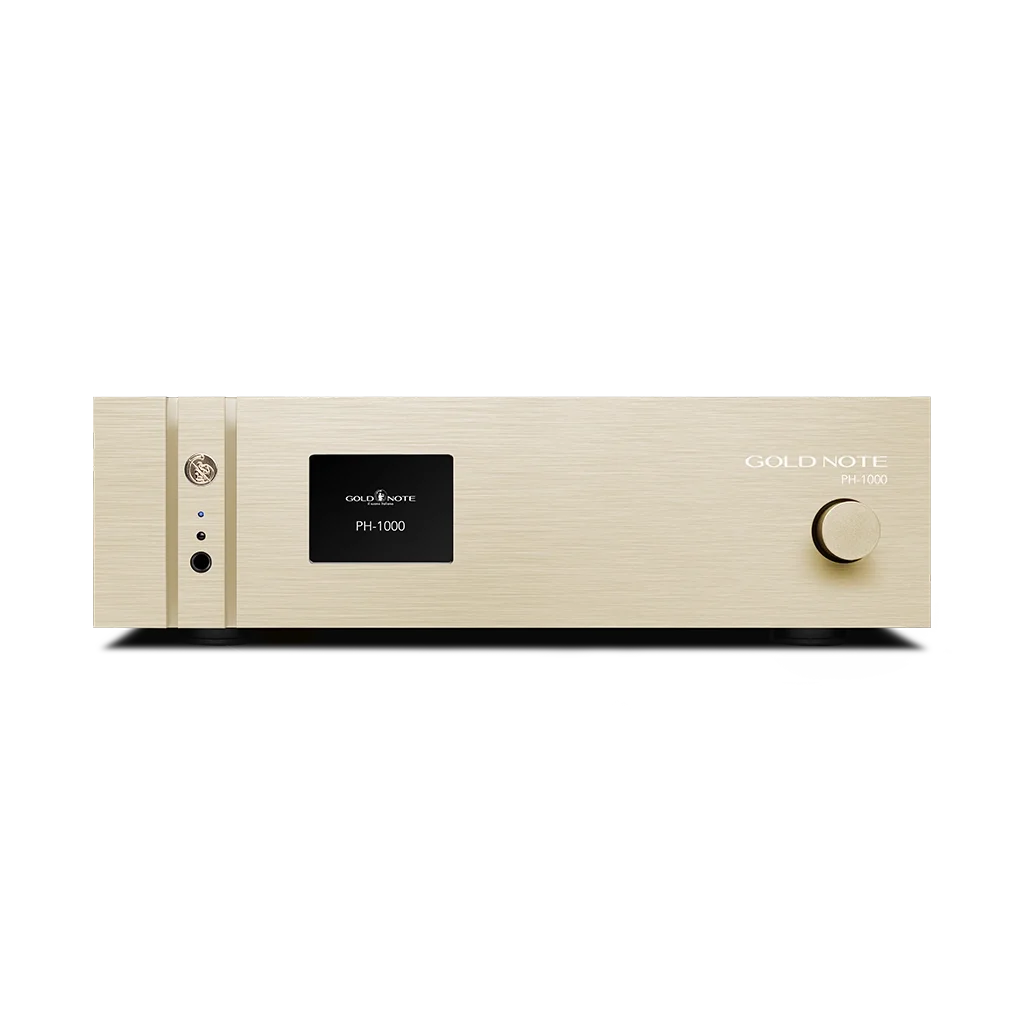

Gold Note PH-1000 Phono Stage Front View

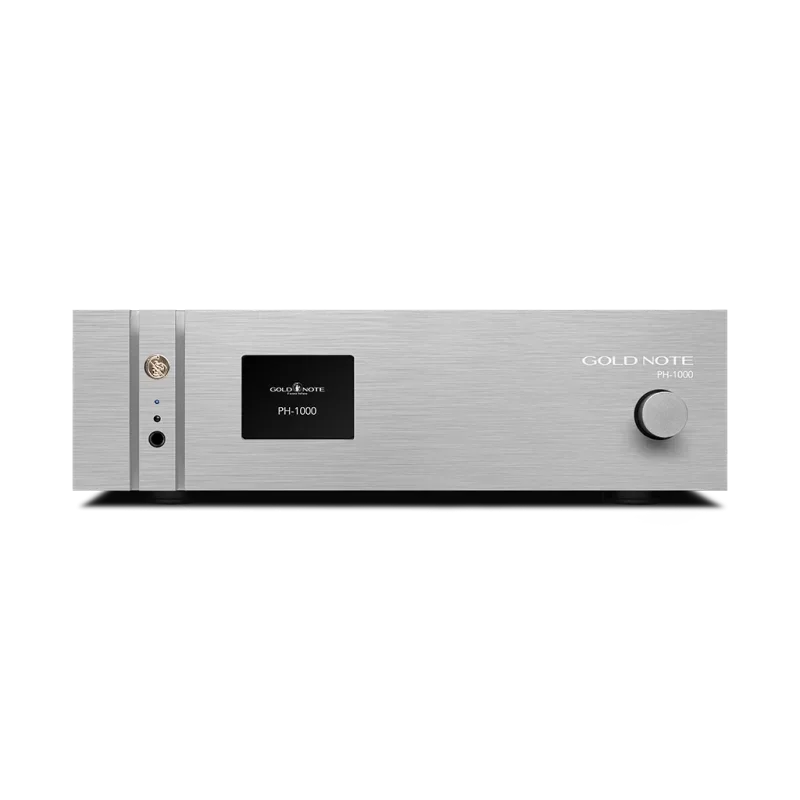

Gold Note PH-1000 Vinyl Preamplifier with 3.5” Color Display

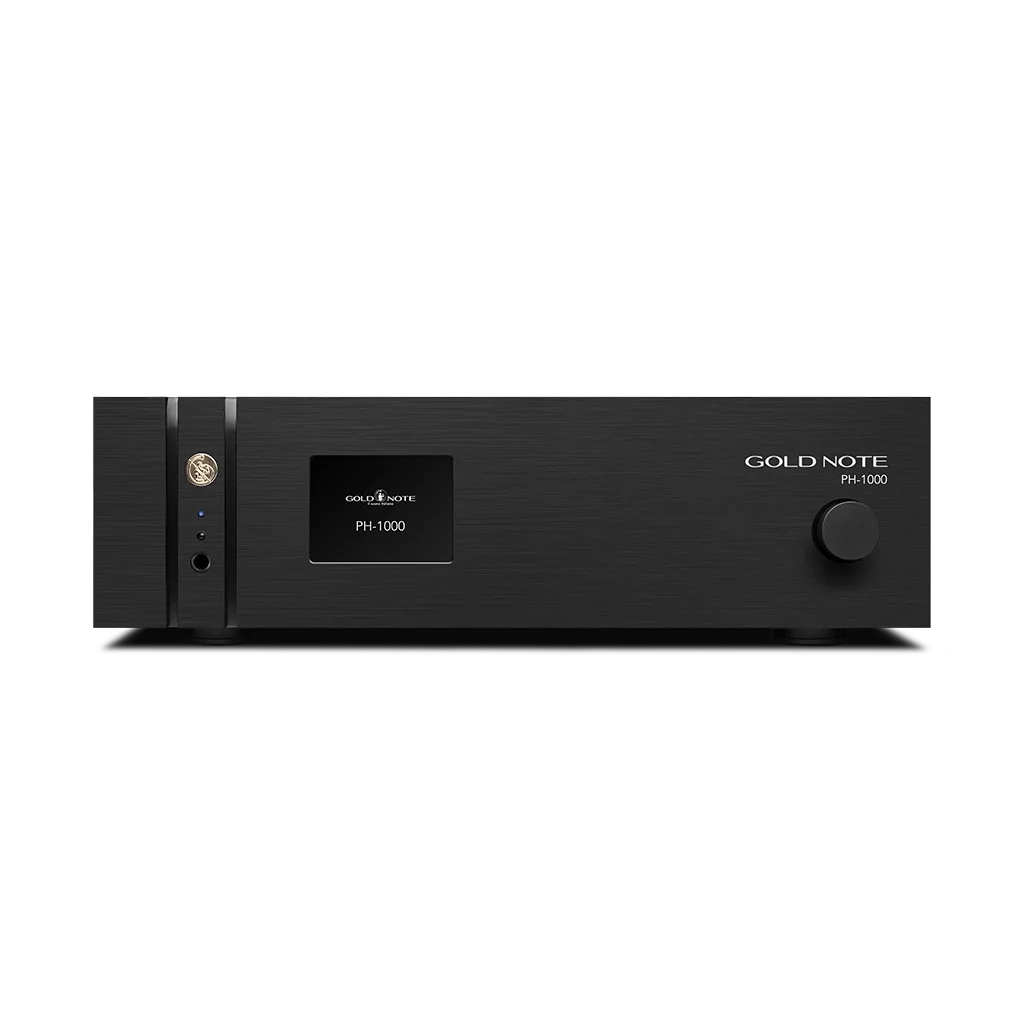

High-End Analogue Phono Preamp Class-A Gold Note PH-1000

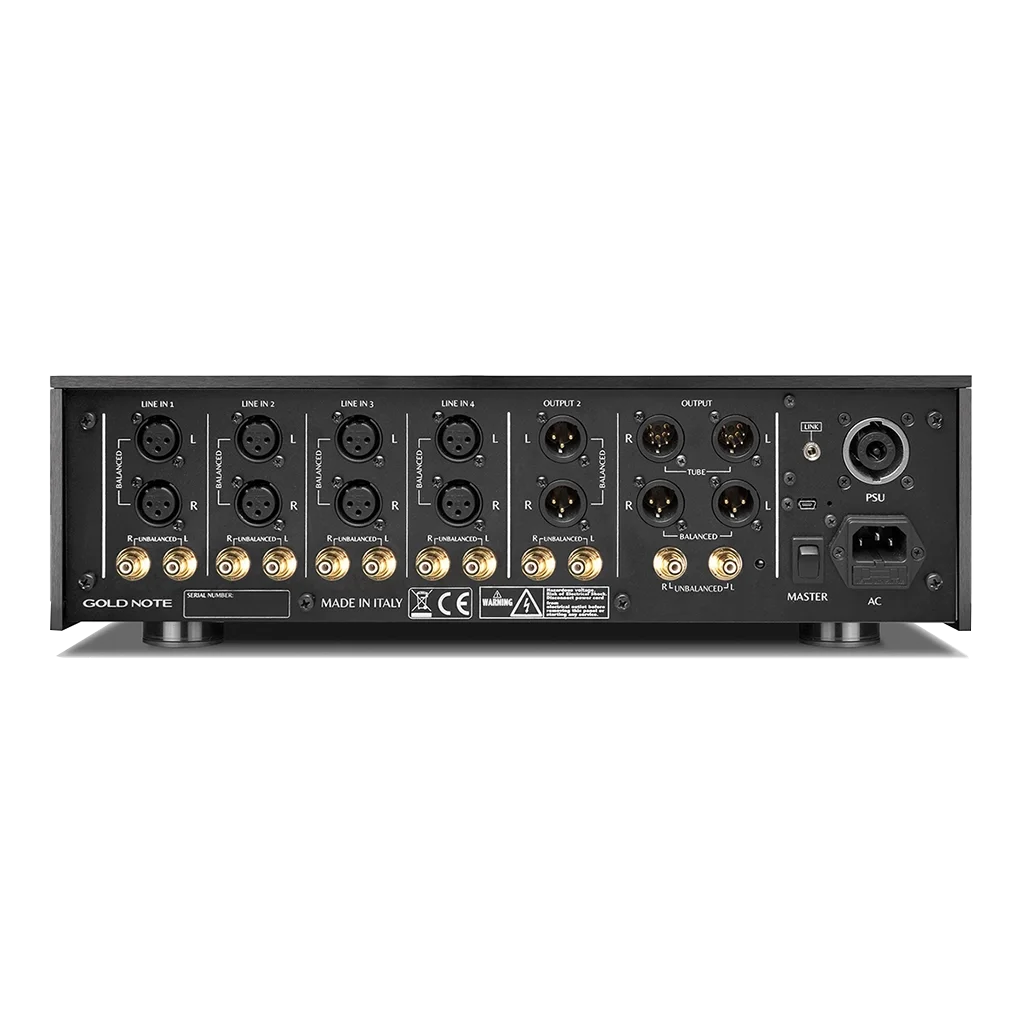

Gold Note PH-1000 Back Panel RCA and XLR Connections
Gold Note PH-1000 Phono Stage Front View
Gold Note PH-1000 Vinyl Preamplifier with 3.5” Color Display
High-End Analogue Phono Preamp Class-A Gold Note PH-1000
Gold Note PH-1000 Back Panel RCA and XLR Connections

Gold Note PH-1000 Phono Stage

$12,995.00

THE LIMITLESS PHONO STAGE

The PH-1000 is a premium phono stage that offers limitless features including unlimited modifiable Equalization Curves, presets of Loads, Capacitance and GAIN ultra-fine adjustments. The PH-1000 can match MM and MC cartridges and it is designed to take top quality turntables to the pinnacle of their audio performances.

Featuring an extremely user friendly interface, the PH-1000 is an innovative and intuitive phono stage. All options are easily selectable with the remote control or directly from the front panel Single Knob Control (SKG) rotary knob while the large 3.5’’ color display shows all selectable functions. Powered by a custom Gold Note firmware loaded on a micro SD Card, updating operations are easily done on a PC when needed. All functions can be adjusted in real time while music is playing, allowing you to find the best setting for any records you are listening to. The PH-1000 is a fully analogue unit designed to preserve at its best the audio signal purity. The Dual-Mono “Discrete Components Design” also guarantees absolute superiority over other digital solutions available. All selectable options are managed by High-End audio-grade analogue switches to shorten the audio signal path, taking the best sound out of any vinyl record.

Color:

THE LIMITLESS PHONO STAGE

The PH-1000 is a premium phono stage that offers limitless features including unlimited modifiable Equalization Curves, presets of Loads, Capacitance and GAIN ultra-fine adjustments. The PH-1000 can match MM and MC cartridges and it is designed to take top quality turntables to the pinnacle of their audio performances.

Featuring an extremely user friendly interface, the PH-1000 is an innovative and intuitive phono stage. All options are easily selectable with the remote control or directly from the front panel Single Knob Control (SKG) rotary knob while the large 3.5’’ color display shows all selectable functions. Powered by a custom Gold Note firmware loaded on a micro SD Card, updating operations are easily done on a PC when needed. All functions can be adjusted in real time while music is playing, allowing you to find the best setting for any records you are listening to. The PH-1000 is a fully analogue unit designed to preserve at its best the audio signal purity. The Dual-Mono “Discrete Components Design” also guarantees absolute superiority over other digital solutions available. All selectable options are managed by High-End audio-grade analogue switches to shorten the audio signal path, taking the best sound out of any vinyl record.

The PH-1000 also integrates a High- End audio analog preamplifier stage to connect the unit directly to a power amplifier like the Gold Note PA-1175 MkII, the powerful and compact PA-10 or even active speakers. The PH-1000 features a convenient high- quality built-in headphone amplifier and three phono inputs: two RCA and one XLR, allowing astounding connectivity. Featuring also swapping channel, Mono/ Stereo mode, a serial port and LAN/W-LAN connection, the PH-1000 is the absolute no compromise High-End audio phono stage solution that offers amazing flexibility for a truly new music experience. To enhance the performance of the PH- 1000 even further, it can optionally be matched to the external super inductive power supply PSU-1250/1000 and the valve output stage TUBE-1012/1006.

MAIN FEATURES

Frequency Response 20Hz – 20kHz
EQ Curves 18 EQ curves all with Enhanced option (±0.3dB)
Infinite EQ curves with 4 manually adjustable presets (only on PH-1000 / PH-1000 LINE)
THD (Total Harmonic Distortion) <0.01% max.
Signal to Noise Ratio 100dB
Dynamic Range 110dB
Infrasonic Filter 10Hz / 36dB octave (ON/OFF)
Mono/Stereo Stereo, Stereo 180°, Mono, Mono 180°, Mono L
Channel Swapping R/L, L/R
IR Receiver For multifunctional remote control

INPUTS AND OUTPUTS

Audio Inputs 2x unbalanced RCA (0.1mV MC up to 8.0mV MM)
1x balanced XLR (0.1mV up to 1.0mV MC)
Load 12 options for RCA [100kΩ, 75kΩ, 47kΩ, 33kΩ, 22kΩ, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω, 10Ω]
8 options for XLR [4k7Ω, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω, 10Ω]
External Load supports RCA and XLR plugs (only on PH-1000 / PH-1000 LINE)
Capacitance OFF, 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
Gain PH-1000 / PH-1000 LINE 40dB MM to 65dB MC with 7 options [0dB, ±3dB, ±6dB, ±9dB]
Gain PH-1000 LITE 40dB MM to 60dB MC with 7 options [0dB, ±3dB, ±6dB, ±9dB]
Line Input Level 2Vrms (standard) up to 2.5Vrms (max)
Audio Outputs 1x unbalanced RCA (up to 2.5Vrms max)
1x balanced XLR (up to 2.5Vrms max)
1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006
Output Impedance Unbalanced 100Ω Balanced 300Ω

POWER

Power Consumption 30W
PSU Input For external power supply Gold Note PSU-1250 & PSU-1000
Power Supply Dual-Mono linear power supply 100–240V with auto sense, 50–60Hz
Fuse 2A T

DIMENSIONS AND WEIGHT

Dimensions 16.93″ W | 5.31″ H | 14.76″ D
24.80″ W | 13.78″ H | 23.62″ D – boxed
Weight26.46 lbs – net
37.48 lbs – boxed

FINISHES

  • Black – Black anodized aluminum with a traditional brushed finish

  • Silver – Silver anodized aluminum with a traditional brushed finish

  • Gold – Gold anodized aluminum with a traditional brushed finish
