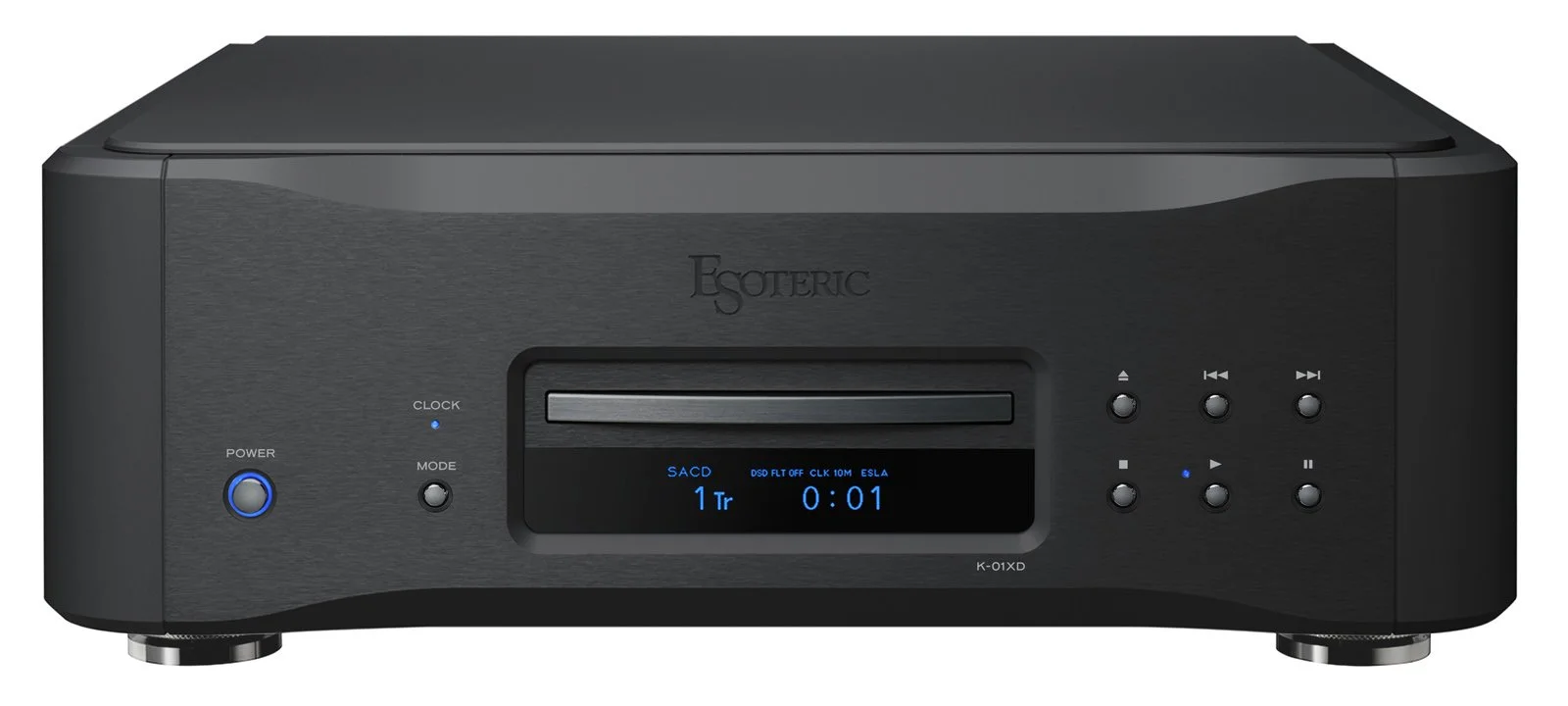

Esoteric K-01XD SE Black Edition SACD/CD Player
Experience reference-quality digital audio with the Esoteric K-01XD SE Black Edition SACD/CD Player. Combining advanced disc transport engineering, a proprietary digital-to-analog converter, and premium Japanese craftsmanship, this limited-edition player is designed for discerning audiophiles seeking exceptional musical detail and precision.
VRDS-ATLAS SACD Transport Mechanism
At the heart of the K-01XD SE Black Edition is Esoteric's VRDS-ATLAS transport mechanism, engineered for exceptional disc stability and accurate digital signal retrieval. Its robust construction and precision-engineered turntable bridge help minimize unwanted vibration during playback.
Master Sound Discrete DAC
Esoteric's proprietary Master Sound Discrete DAC features a custom FPGA-based architecture and a 64-bit/512Fs delta-sigma modulator. Carefully selected components and an upgraded DAC board support precise digital-to-analog conversion for detailed, natural-sounding music reproduction.
Advanced Power Supply Design
Four independent toroidal power transformers serve the player's different circuit sections, including dedicated transformers for the left and right DAC channels. A bank of 71 EDLC supercapacitors provides substantial energy storage to support stable operation and refined audio performance.
High-Resolution Digital Connectivity
The K-01XD SE supports SACD and CD playback, including CD-R and CD-RW discs. Its connectivity includes balanced XLR and RCA analog outputs, digital XLR and RCA outputs, optical and coaxial digital inputs, USB-B, and a BNC clock input. Supported digital processing includes PCM upsampling up to 768kHz and PCM-to-DSD conversion up to 22.5MHz.
Exclusive Black Edition Design
The limited Black Edition combines Esoteric's signature engineering with an elegant black finish, creating a sophisticated centerpiece for a high-end audio system. Designed and manufactured in Tokyo, Japan, the K-01XD SE reflects a commitment to precision, durability, and musical excellence.
Spec description
Playable disc types : Super Audio CD, CD (including CD-R and CD-RW)
Anaog audio outputs
XLR/ESL-A :1 pair (L/R)
Output impedance :114Ω
Maximum output level :5.0Vrms (1kHz, 10kΩ loaded)
RCA :1 pair (L/R)
Output impedance :34Ω
Maximum output level: 2.5Vrms (1kHz, 10kHz loaded)
Digital audio outputs
XLR :1
Output impedance “3Vp-p (110Ω loaded)
Output signal formats : Linear PCM (AES/EBU) 44.1kHz,16-bit（CD）
RCA : 1
Output impedance :0.5Vp-p (75Ω loaded)
Output signal formats : Linear PCM (IEC60958) 44.1kHz,16-bit（CD）
Digital audio inputs
RCA : 1
Input signal formats
Linear PCM :32k to 192kHz, 16/24-bit (IEC60958)
DSD :2.8MHz (DoP)
OPTICAL :1
Input signal formats
Linear PCM :32k to 192kHz, 16/24-bit (IEC60958)
DSD :2.8MHz (DoP)
USB B :1 (USB2.0 supported)
Input signal formats
Linear PCM :44.1k to 384kHz, 16/24/32-bit (IEC60958)
DSD :2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
Clock input
BNC :1
Input impedance :50Ω
Frequencies that can be input (±10ppm) :10MHz
Input level :0.5 to 1.0Vrms (Sine wave)
External control interface
RS-232C: 1 (Please see here for command table)
Trigger :1 (3.5mm Monaural mini jack)
General
Power supply
Model for Europe : AC 220 to 240V, 50/60Hz
Model for US/Canada : AC 120V, 60Hz
Model for Korea : AC 220V, 60Hz
Model for Hong Kong : AC 230V, 50Hz
Power consumption : 26W
External dimensions (W×H×D) : 445 × 162 × 438mm
17-⅝" × 6-½" × 17-¼" (including protrusions)
Weight : 31kg / 68-⅜ lb
Included accessories
Power cord set × 1
Remote control (RC-1333) × 1
AA batteries × 2
Felt pads × 3
Owner's manual × 1
Warranty card × 1
Audio performance
Frequency response : 5Hz to 30kHz (–3dB, Super Audio CD, 0dB, DSDF=F2, XLR output)
S/N ratio : 113dB (A-weight, Super Audio CD, 0dB, DSDF=F2, XLR output)
Distortions : 0.0007% (1kHz, Super Audio CD, 0dB, DSDF=F2, XLR output)
