DS Audio DS Grand Master Phono Stage / Equalizer two chassis phono stage

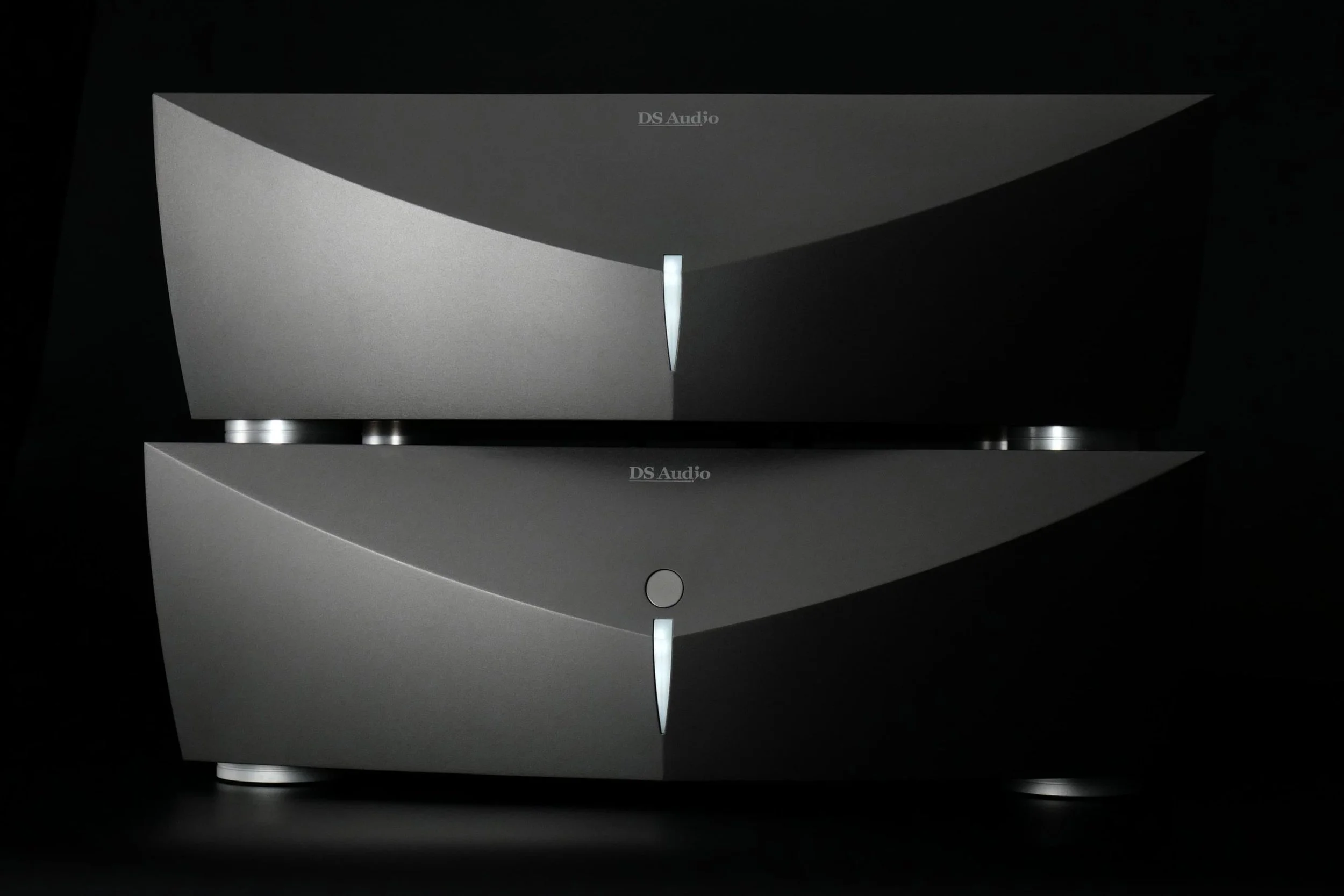

The power unit and equalizer unit are completely separate units

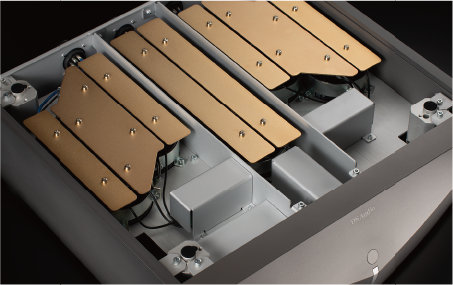

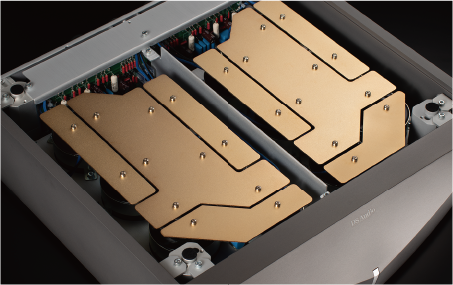

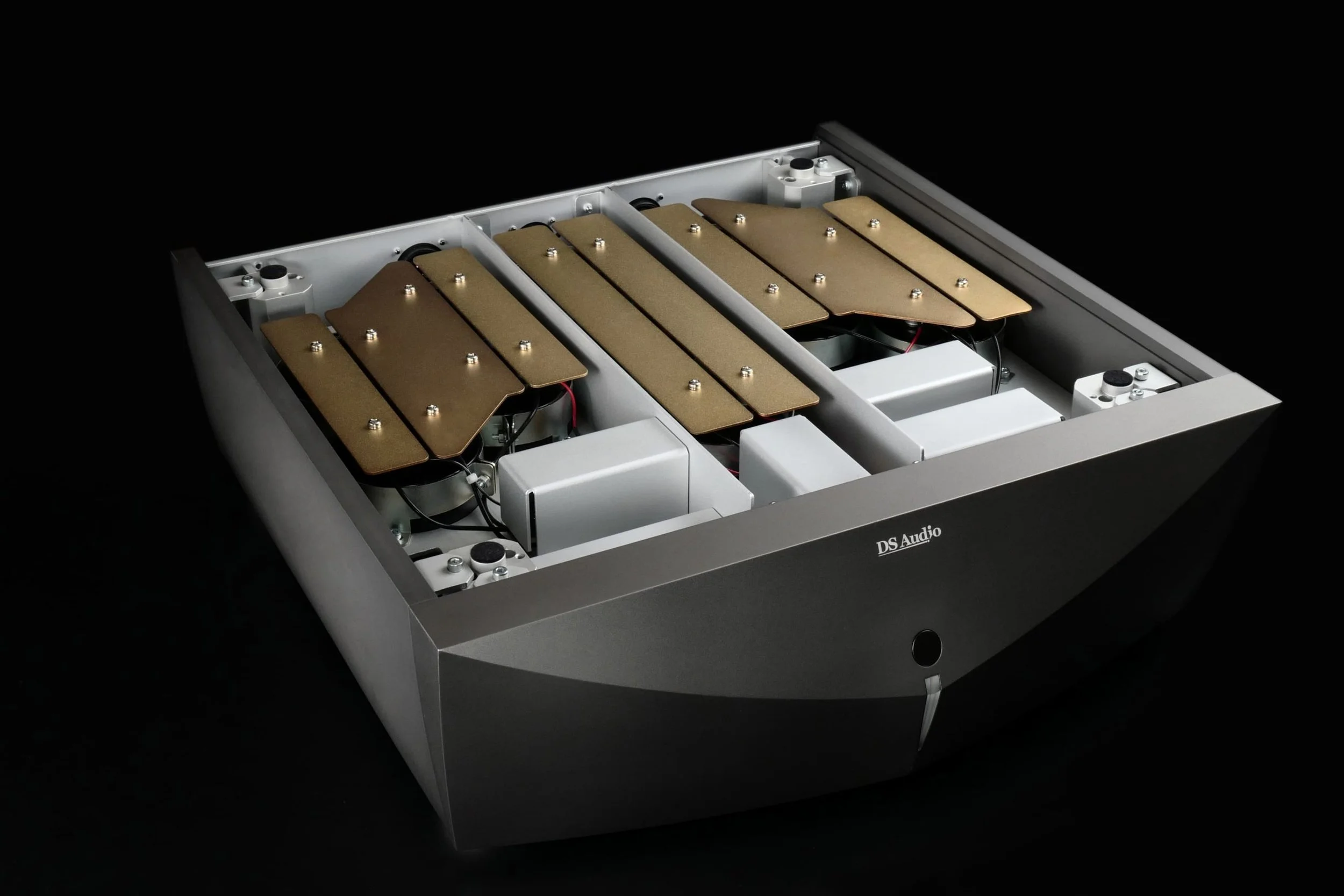

The DS Audio Grand Master system features a separate equalizer and power supply, each in an independent chassis. Using 2.34 million uF and 2.97 million uF electrolytic capacitors within the equalizer and power supply units, respectively, has resulted in a significantly stronger power supply design and improved reproduction of deeper low frequencies. In addition, the Grand Master equalizer incorporates special film capacitors custom-built to DS Audio's specifications, along with non-induction winding resistors. The design features three transformers, each with a capacity 1½ times greater than that of the DS Master 1, one for the left and one for right channels, with the third handling the power supply to the optical cartridge.
A total of 6 optional low-frequency cut-off points

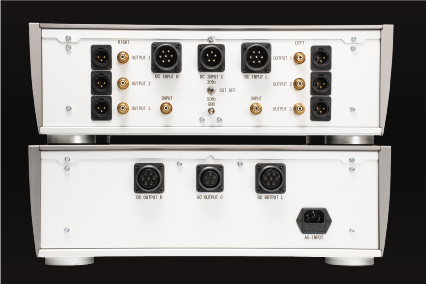

The Grand Master equalizer features single-ended RCA and balanced XLR outputs. Additionally, you can choose from 6 different low-frequency cut-off points, allowing it to seamlessly integrate with any hi-fi system.
Grand Master Equalizer for Optical Cartridge
Output motor : 700mV (1kHz)
Output impedance : RCA 120Ω XLR 120Ω
Preamp input impedance : More than 10kΩ
Input back : RCA
Output terminal : RCA terminal×3, XLR terminal×3
Size : W45.2cm×H15.2cm×D48.6cm(Both)
Weight : 25.1kg(Equalizer unit), 29.8kg(Power unit)
