New Amplification and Power Supply Circuits
In the DS-E3 equalizer, the amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.
Miniaturization is achieved by using an operational amplifier

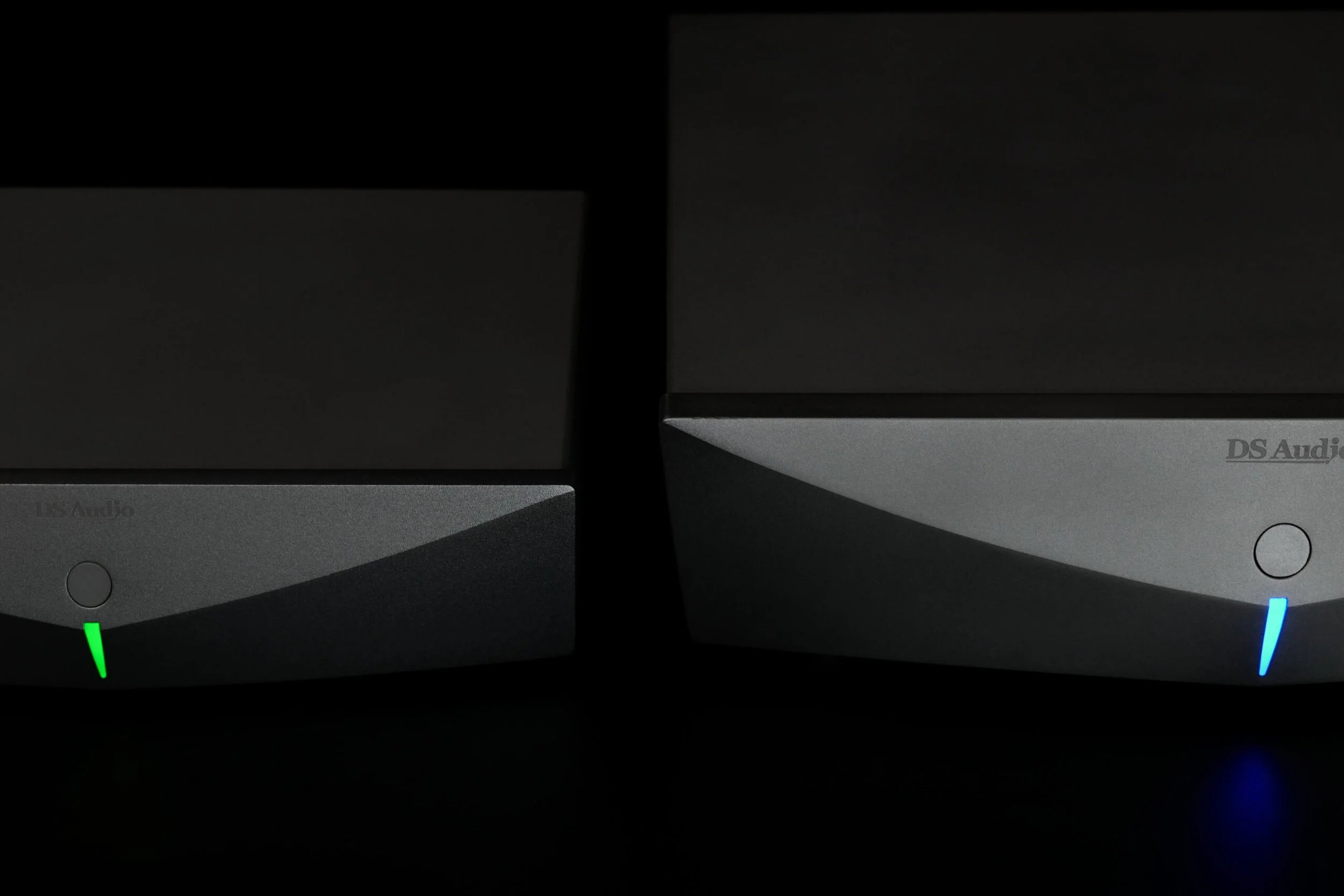

The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.

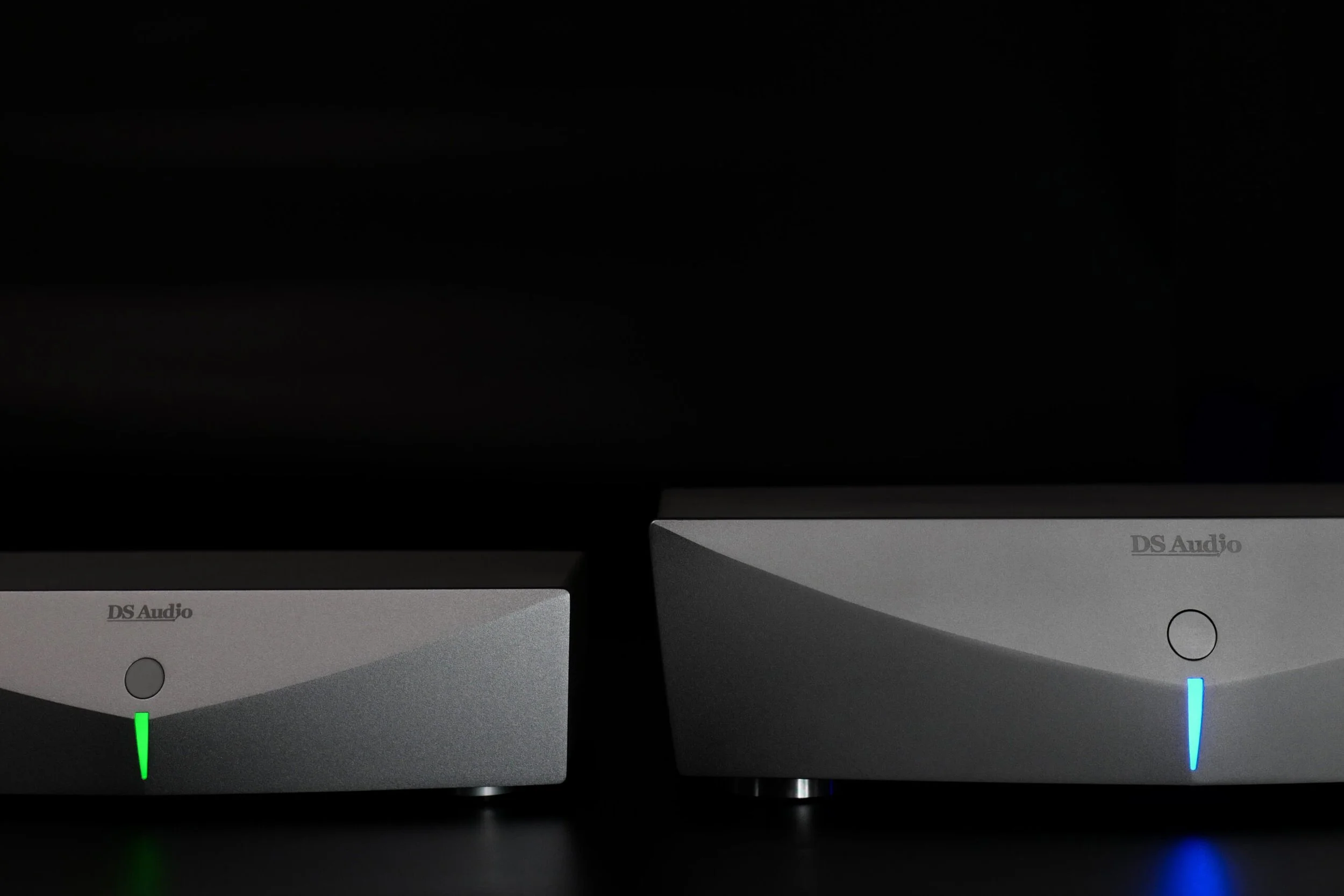

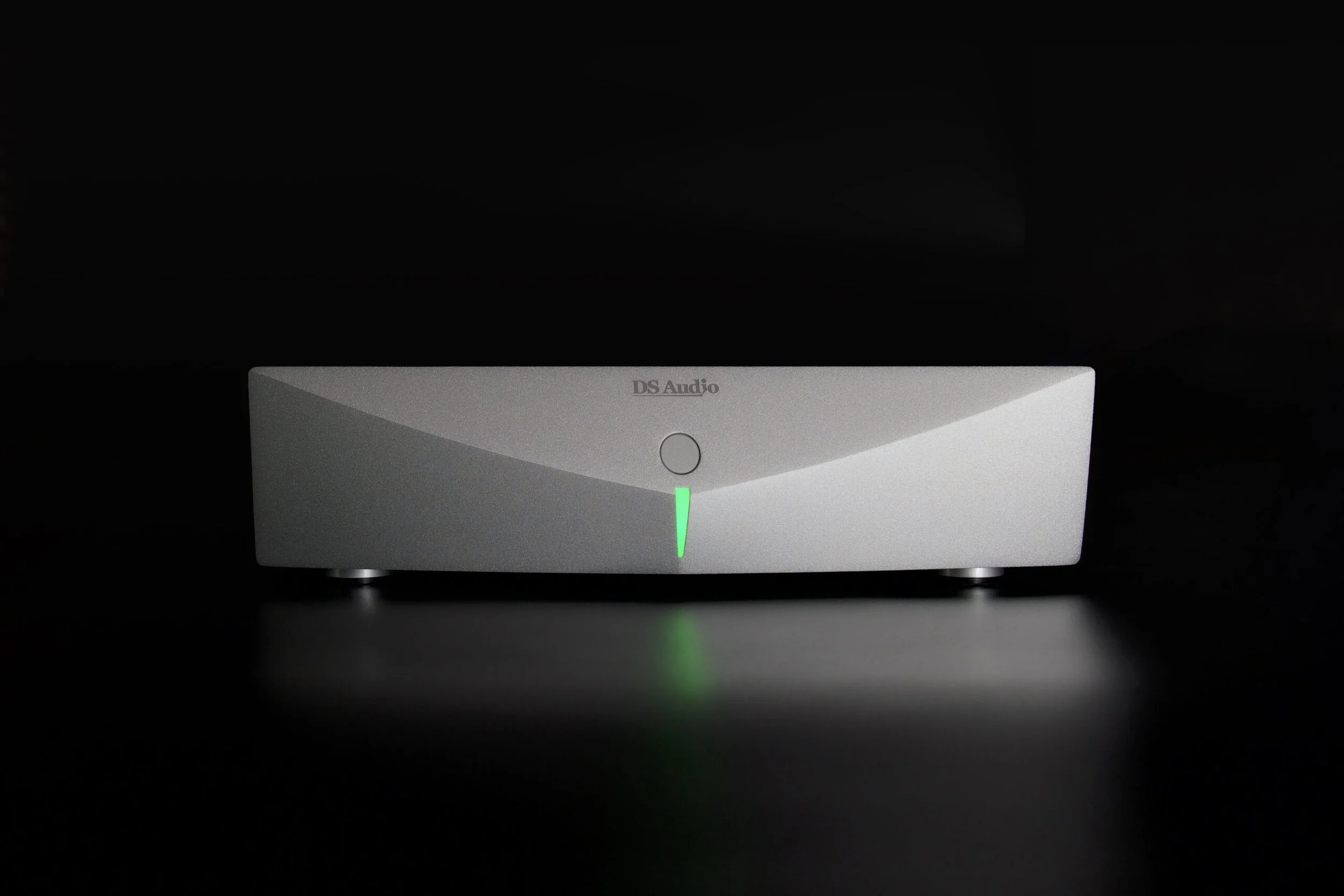

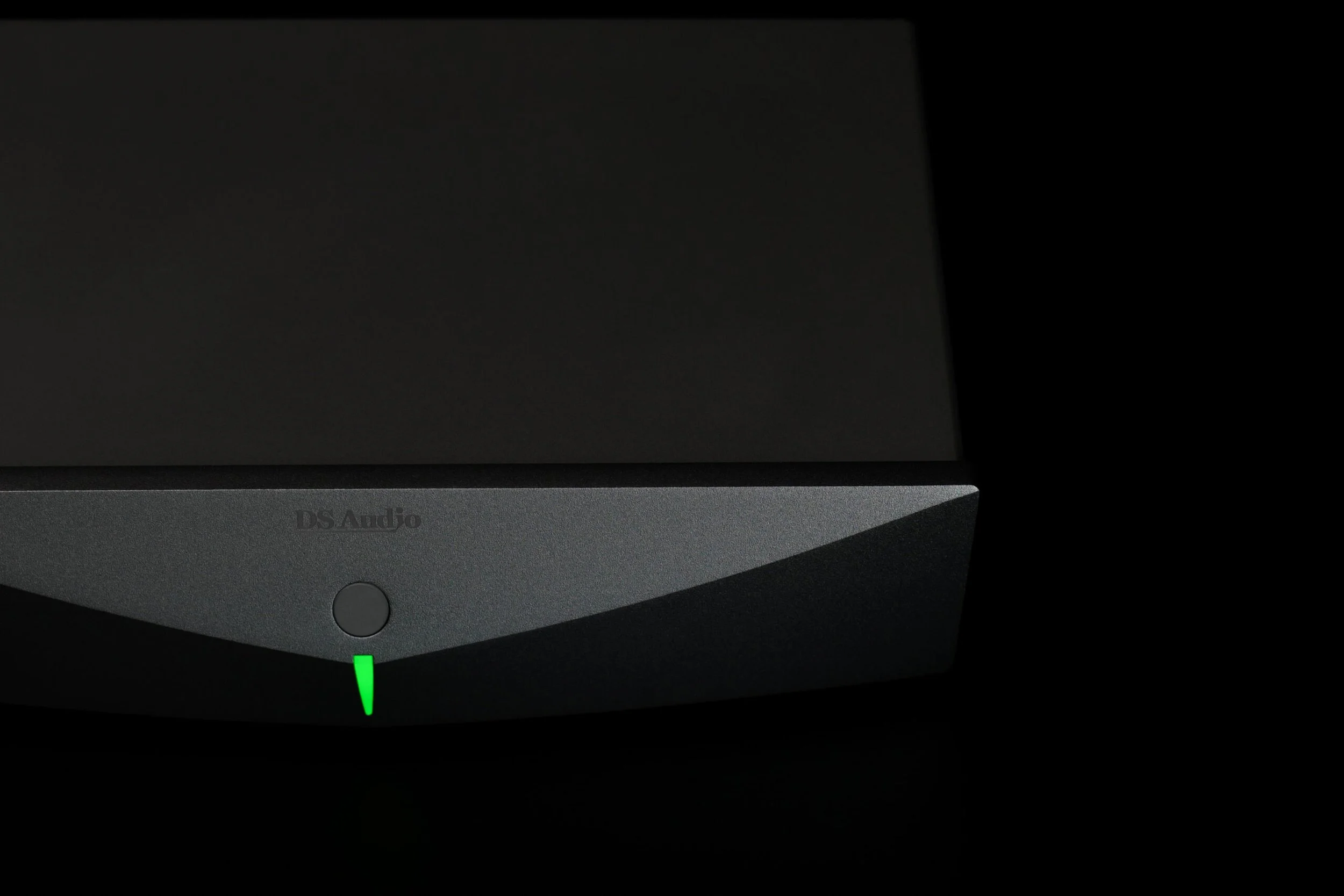

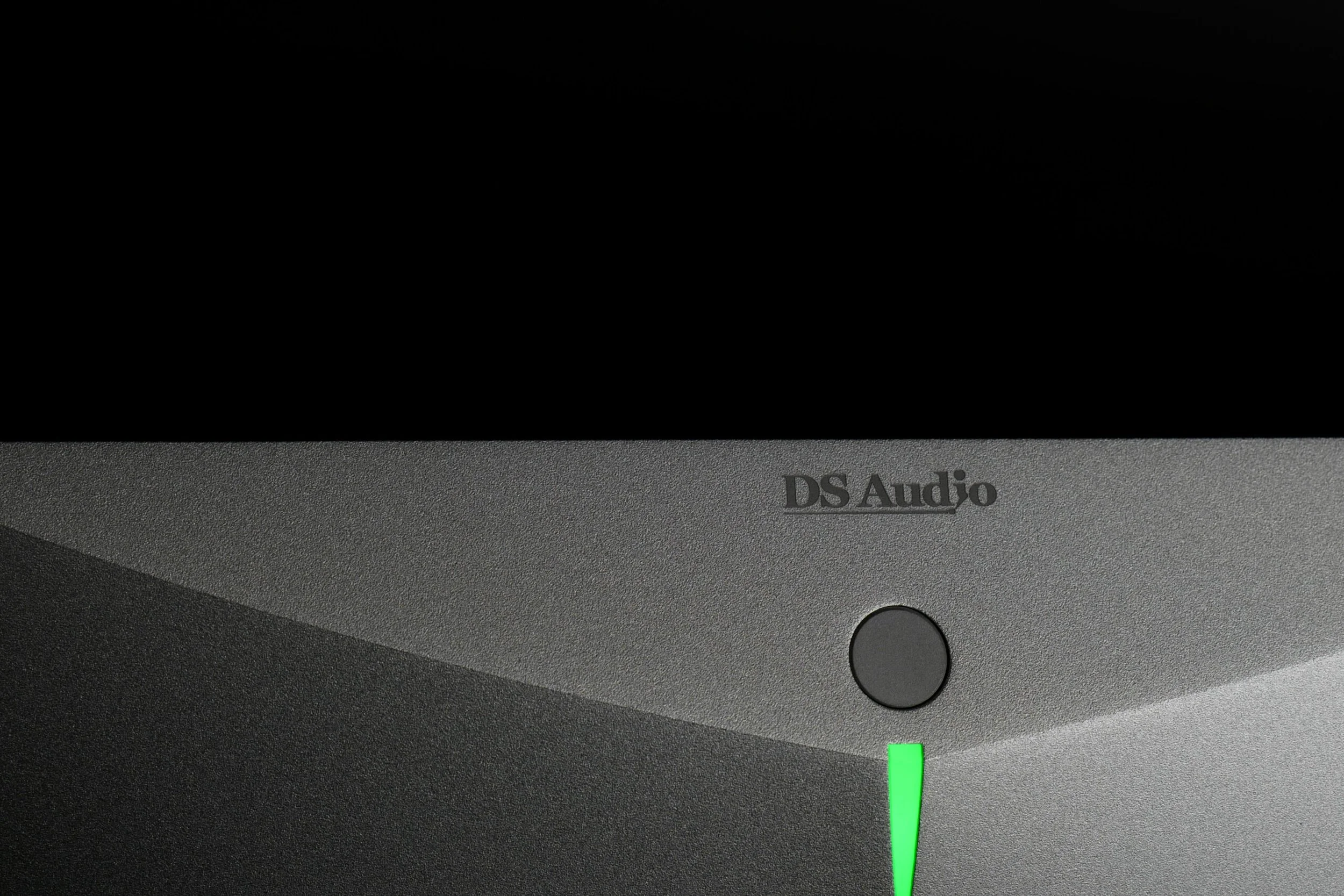

DS-E3 Equalizer for Optical Cartridge
Output motor : 500mV (1kHz)
Output impedance : 120Ω
Preamp input impedance : More than 10kΩ
Input back : RCA
Output terminal : RCA terminal (Switch two outputs with switch)
Size : W26cm × H6.9cm × D19.5cm
Weight : 1.86kg
New Amplification and Power Supply Circuits
In the DS-E3 equalizer, the amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.
Miniaturization is achieved by using an operational amplifier
The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.
DS-E3 Equalizer for Optical Cartridge
Output motor : 500mV (1kHz)
Output impedance : 120Ω
Preamp input impedance : More than 10kΩ
Input back : RCA
Output terminal : RCA terminal (Switch two outputs with switch)
Size : W26cm × H6.9cm × D19.5cm
Weight : 1.86kg
