DS Audio DS E3 System
includes cartridge and phono stage
"The game changer"
DS-E3
Truly beyond price.
The DS-E3 is a revolutionary technology in historic record reproduction.
Ikuo Tsunoda, Audio Critic
Cartridge
Uses a third-generation optical cartridge mechanism
The DS-E3 uses a third-generation optical cartridge mechanism, the same design as our other products.
The DS-E3 achieves an overwhelmingly low price while inheriting the merits of the third-generation mechanism, such as higher output due to independent LED and PD, improved channel separation, and the use of a beryllium light shielding plate.
Aluminum cantilever with elliptical needle
The cantilever is made of aluminum and the needle tip is a solid elliptical needle. While adopting the third-generation optical cartridge mechanism, the channel separation is set 1db lower to improve mass production efficiency.
Equalizer
New Amplification and Power Supply Circuits
In the DS-E3 equalizer, the amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.
Miniaturization is achieved by using an operational amplifier

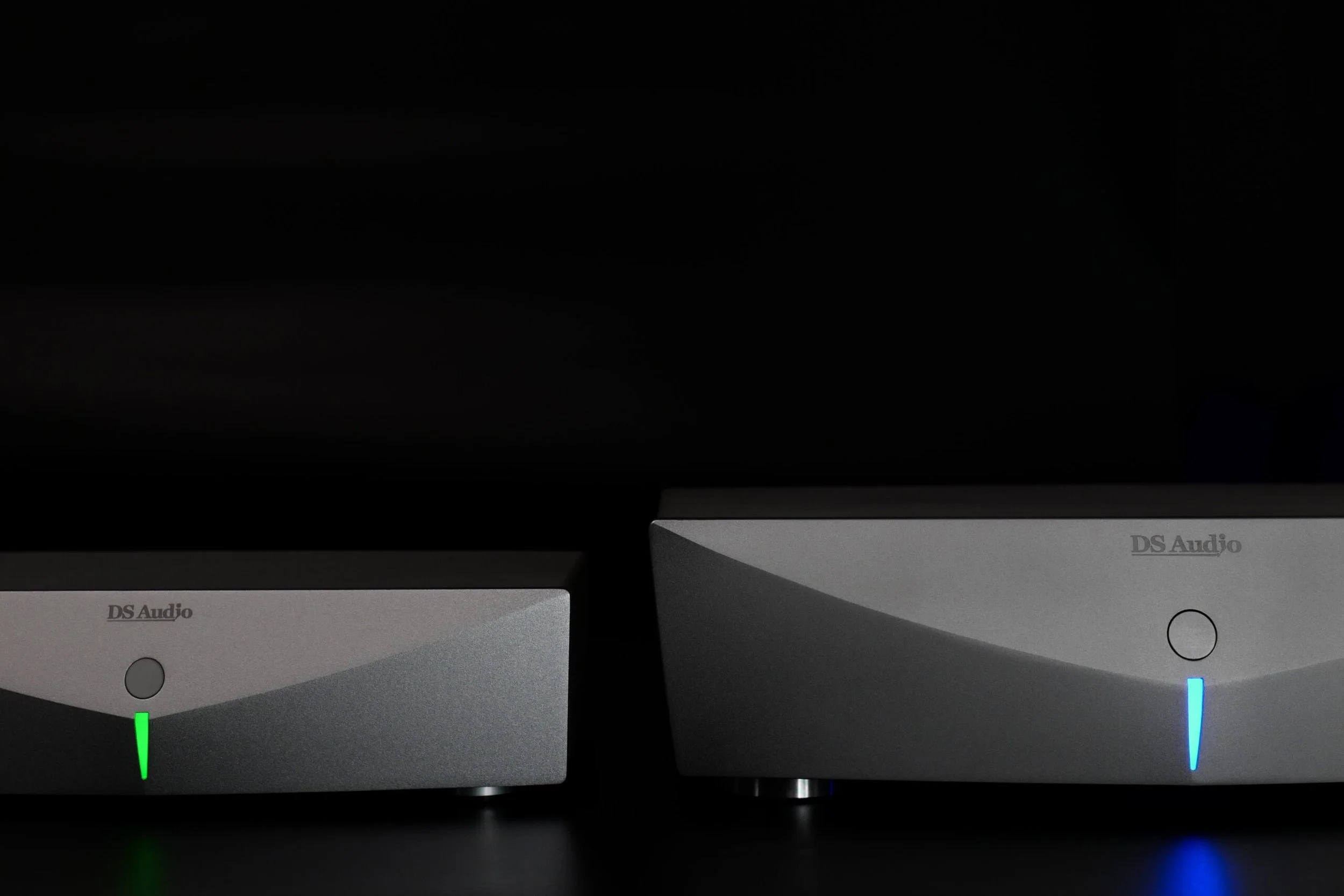

The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.

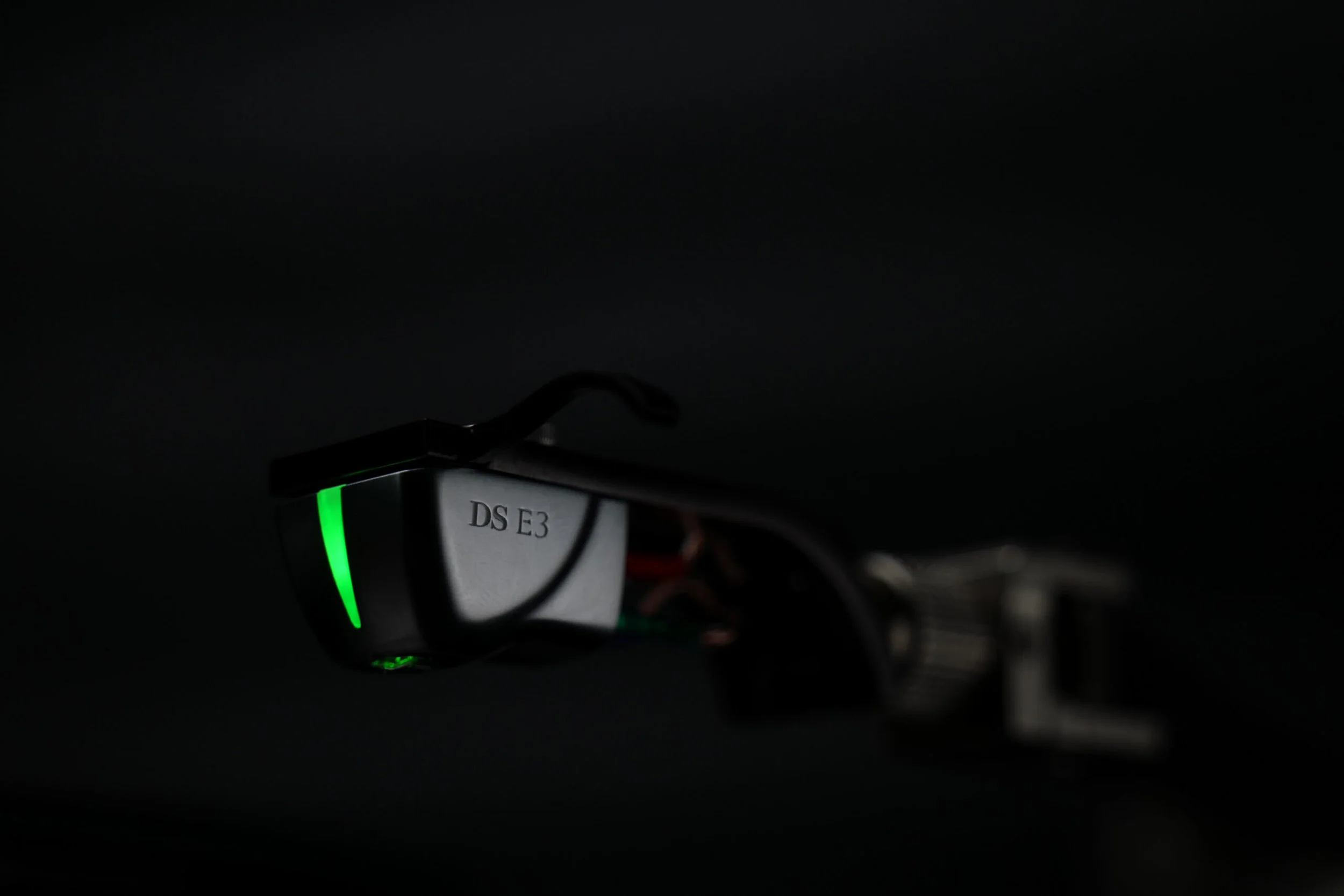

DS-E3 Optical Cartridge
Signal output : Photoelectric Conversion
Channel dispersion : 26 dB more (1 kHz)
Weight : 7.7g
output signal channel : 70mV more
Canti-lever : Alminum
Body material : Alminum
Needle polish : 2.0g~2.2g(2.1g is recommended)
Stylus : Elliptical Needle

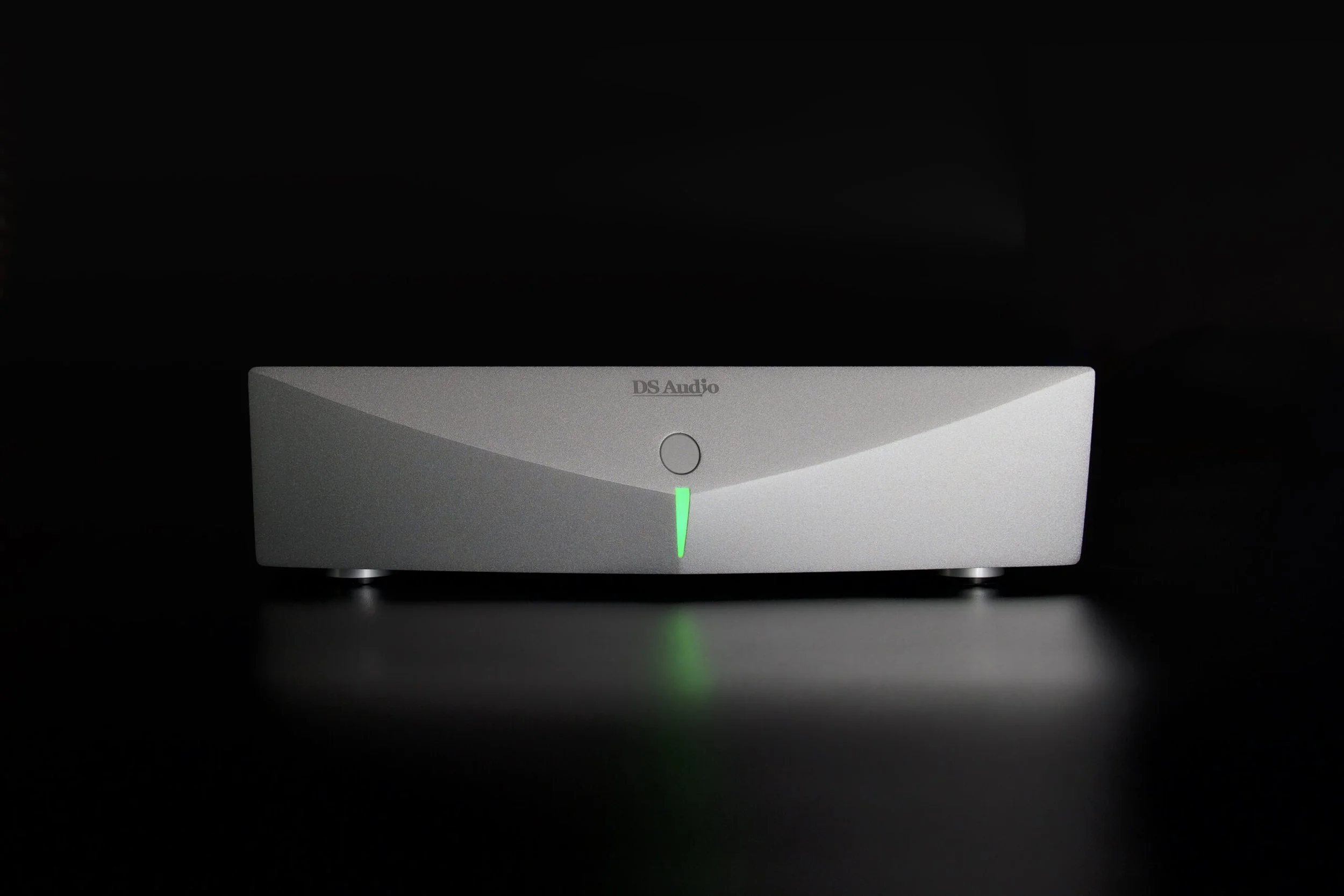

DS-E3 Equalizer for Optical Cartridge
Output motor : 500mV (1kHz)
Output impedance : 120Ω
Preamp input impedance : More than 10kΩ
Input back : RCA
Output terminal : RCA terminal (Switch two outputs with switch)
Size : W26cm × H6.9cm × D19.5cm
Weight : 1.86kg
Download
Watch
