DS Audio DS 003 Phono Stage / Equalizer

Changed the thickness of the circuit board and the thickness of the copper foil.

Compared to the DS002 equalizer, the thickness of the circuit board has been changed from 1.6 mm to 2.0 mm, and the thickness of the copper foil has been changed from 35µ to 70µ.In addition, the DS003 equalizer allows you to select the cutoff frequency for the low frequency range from four types, allowing you to select an output that better matches your system.

Hand-made in Japan circuit board

Every component part used in our products is tested and evaluated by our expert Japanese technicians.

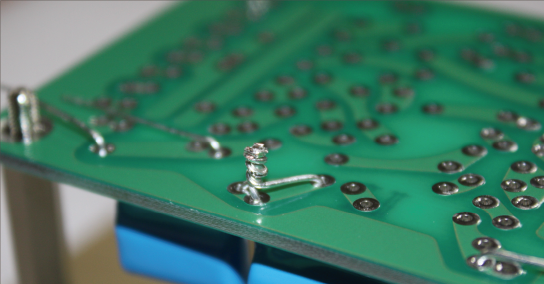

In addition to using a specially printed circuit board, twist-connection of the component legs is further evidence of DS Audio's excellent attention to detail. Each and every product is hand-made and quality assured by our skilled engineers.

DS 003 Equalizer for Optical Cartridge

• Output motor : 500mV (1kHz Equalizer output)

• Output impedance : RCA 120Ω

• Preamp input impedance : More than 10kΩ

• Input back : RCA

• Output terminal : RCA terminal x 2

• Size : W33cm × H9.2cm × D29.5cm

• Weight : 5.0kg
